Polyvinyl Chloride (PVC) material testing

What is PVC Material Testing?

PVC material testing is the systematic evaluation of polyvinyl chloride polymers to determine their chemical composition, physical properties, mechanical performance, and thermal behavior. These comprehensive analytical procedures ensure PVC materials meet specific industry requirements and standards for applications ranging from construction and packaging to healthcare and electronics.

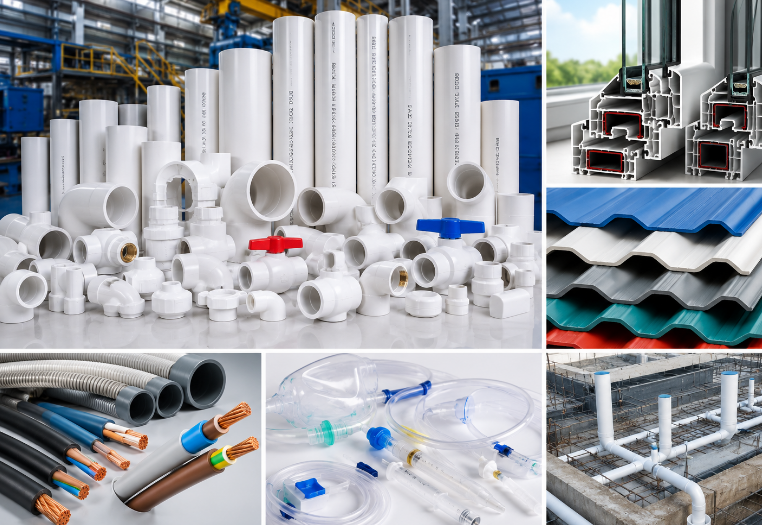

Polyvinyl chloride is a widely used thermoplastic polymer formed by polymerizing vinyl chloride monomers. PVC can be manufactured as rigid or flexible materials, transparent or opaque, and in various colors through the addition of plasticizers, stabilizers, fillers, and other additives. Testing verifies that these formulations achieve desired performance characteristics for their intended applications.

Chemical analysis and characterization of PVC is essential for controlling transformation processes, preventing defects, and ensuring finished products comply with regulatory standards and performance specifications.

Why PVC Testing Matters

PVC testing serves critical functions across manufacturing, quality control, and regulatory compliance that directly impact product safety, performance, and market acceptance.

Material Characterization: Testing determines fundamental properties including density, molecular mass, thermal stability, and mechanical characteristics essential for material selection and design calculations.

Quality Assurance: Systematic testing identifies manufacturing variations, contamination, and formulation inconsistencies that could compromise product performance or safety.

Regulatory Compliance: Testing verifies conformance with standards such as ASTM, ISO, and UNE-EN specifications required for construction materials, medical devices, and consumer products.

Failure Analysis: When PVC products fail prematurely, testing identifies root causes including formulation defects, processing errors, or environmental degradation.

Product Development: Testing provides feedback for optimizing formulations, evaluating new additives, and validating material substitutions for improved performance or sustainability.

Safety Assurance: Testing detects harmful substances including phthalates, heavy metals, and degradation products that could pose health risks in medical, food contact, or consumer applications.

Key PVC Material Properties Tested

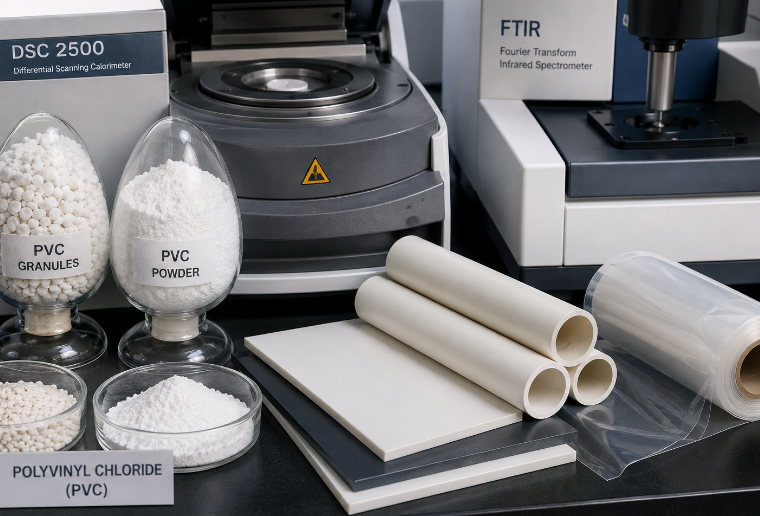

Chemical Composition Analysis

Fourier Transform Infrared Spectroscopy (FTIR): Identifies polymer type and additives by analyzing molecular fingerprints. Pyrolysis sample preparation enables analysis of unknown samples without prior knowledge of solubility or melting characteristics.

Thermal Cracking-Gas Chromatography-Mass Spectrometry (Py-GC-MS): Qualitatively analyzes pyrolysis products to confirm PVC presence and quantifies polyvinyl chloride content using characteristic pyrolysis product benzene as reference.

Additive Detection: Gas chromatography-mass spectrometry (GC-MS), liquid chromatography-tandem mass spectrometry (LC-MS/MS), and ion chromatography (IC) detect and quantify plasticizers, stabilizers, fillers, and other additives.

Contamination Analysis: Identifies heavy metals, residual solvents, degradation products, and foreign materials that could affect performance or safety.

Physical Properties

Density: Measured according to EN ISO 1183-1 using pycnometer method. Density values indicate material composition and consistency between batches.

Ash Content: Determined per EN ISO 3451-5 Method A to measure inorganic residue including fillers and contaminants after controlled incineration.

Hardness: Shore durometer measurements per ISO 868 assess material resistance to permanent indentation, indicating formulation consistency and suitability for intended applications.

Size Distribution: Particle size analysis per UNE-EN 15346 Annex D (micronized particles) or Annex E (other forms) determines particle range affecting processing behavior and homogeneity.

Apparent Density: Measured per UNE-EN 15346 Annex B to assess bulk density characteristics relevant to handling and processing.

Moisture Content: Residual humidity determined using Karl Fisher titration or similar methods per EN 12099 affects processing behavior and product quality.

Mechanical Properties

Tensile Properties: Measured per EN ISO 527-1 and EN ISO 527-2, tensile testing determines strength, elongation, and modulus indicating material's resistance to pulling forces and ability to stretch without breaking.

Flexural Properties: Three-point or four-point bending tests assess behavior under bending loads, critical for structural applications.

Compression Properties: Testing determines behavior under compressive loads, important for piping and structural applications.

Impact Resistance: Charpy and Izod impact tests measure energy absorption during fracture, indicating material toughness and suitability for applications subject to sudden loads.

Thermal Properties

Thermal Stability: Differential scanning calorimetry (DSC) determines transition temperatures including glass transition temperature and assesses overall thermal stability within operating temperature ranges.

Thermogravimetric Analysis (TGA): Measures relationship between sample mass and temperature under programmed heating, providing information about thermal stability, decomposition temperatures, and component quantification.

VICAT Softening Temperature: Per EN ISO 306 Method A, determines temperature at which PVC softens under standard load, indicating heat resistance for application suitability.

Melt Flow Rate: Per ASTM D1238, ISO 1133, and related standards, measures material flow characteristics under specified temperature and load conditions, critical for processing optimization.

PVC Testing Methods and Standards

ASTM Standards for PVC Testing

ASTM D1785: Standard specification for rigid poly(vinyl chloride) (PVC) and chlorinated poly(vinyl chloride) (CPVC) plastic pipe, fittings, and components.

ASTM D3039: Standard test method for tensile properties of polymer matrix composite materials, applicable to reinforced PVC formulations.

ASTM D882: Standard test method for tensile properties of thin plastic sheeting, used for flexible PVC films and membranes.

ASTM D638: Standard test method for tensile properties of plastics, widely applied to PVC materials for strength and elongation characterization.

ASTM D1238: Standard test method for melt flow rate of thermoplastics, measuring flow behavior critical for processing optimization.

ISO Standards for PVC Testing

EN ISO 527 Series: Tensile testing standards for plastics, determining tensile strength, modulus, and elongation.

EN ISO 1183-1: Density determination methods for plastics, including pycnometer and immersion procedures.

ISO 868: Determination of indentation hardness using Shore durometers for plastics and ebonite.

EN ISO 306: Thermoplastic materials determination of VICAT softening temperature.

ISO 1133: Determination of melt mass-flow rate and melt volume-flow rate of thermoplastics.

European Standards for Recycled PVC

UNE-EN 15346: Characterization of PVC recyclates specifying mandatory and optional testing for quality assessment and application suitability.

Mandatory characterization includes visual inspection, ash content, hardness, size distribution, apparent density, and impurity content.

Optional testing encompasses density, tensile properties, thermal stability, VICAT temperature, residual humidity, volatile content, contamination analysis, and artificial aging.

Recycled PVC Testing Requirements

Mandatory Characterization Tests

Recycled PVC (rPVC) testing ensures materials meet quality standards for secondary applications including pipes, window profiles, flooring, cables, and construction products.

Visual Inspection: Assessment of color consistency and physical form including granules, powder, or other recycled forms.

Ash Content: Measures inorganic filler and contaminant content after controlled incineration, indicating material purity and composition.

Hardness: Shore durometer measurements verify formulation consistency and suitability for intended applications.

Particle Size Distribution: Determines particle range affecting processing behavior, melt uniformity, and final product properties.

Apparent Density: Bulk density measurement relevant to handling, storage, and processing equipment design.

Impurity Content: Identification and quantification of foreign materials affecting product quality and performance.

Optional Testing for Comprehensive Evaluation

Advanced Mechanical Properties: Complete tensile, flexural, and compression characterization for demanding applications.

Thermal and Processability Characteristics: Detailed thermal analysis for processing optimization and application temperature limits.

Composition and Purity: Advanced contamination analysis, volatile content, and detailed chemical characterization.

Durability and Suitability: Artificial aging studies, long-term performance prediction, and recycling suitability assessment.

Specialized PVC Testing Applications

Chemical Testing

Phthalates Analysis: Testing for plasticizer content ensures compliance with regulations restricting phthalate use in toys, medical devices, and food contact materials.

Heavy Metals Detection: Identifies lead, cadmium, and other restricted metals in PVC formulations, critical for regulatory compliance.

Plastic Pipe Testing: Comprehensive analysis of PVC piping ensures functional integrity, durability, and compliance with pressure and structural requirements.

Physical Testing

Environmental Resistance: Evaluates degradation from temperature cycling, UV exposure, water immersion, and chemical contact simulating real-world service conditions.

Surface Properties: Hardness, scratch resistance, and surface texture measurements for applications requiring specific aesthetic or functional characteristics.

Dimensional Stability: Assessments of warpage, shrinkage, and dimensional changes under thermal and mechanical stress.

Thermal Analysis

Crystallinity Evaluation: DSC and thermal analysis determine crystalline structure affecting mechanical properties and processing behavior.

Decomposition Studies: TGA identifies thermal degradation mechanisms and temperatures relevant to processing limits and fire safety.

Processing Behavior: Melt flow testing optimizes extrusion, injection molding, and other thermoplastic processing parameters.

PVC Testing Equipment and Instrumentation

Melt Flow Index Testing

Melt Flow Index Tester: Measures polymer flow characteristics under specified temperature and load conditions per ASTM D1238, ISO 1133, and related standards.

Key features include:

• Microprocessor-based PID temperature controllers for precise thermal control

• Automatic sample cutting for improved efficiency and consistency

• Digital preset timers ensuring accuracy and repeatability

• Die steel barrels providing uniform and consistent heating

• Multiple weight options for different material types and test conditions

Test Procedure:

1. Level equipment and connect to appropriate power supply

2. Set temperature and test duration on digital controller

3. Load appropriate weight for material type

4. Introduce sample material into heated barrel

5. Allow thermal equilibration under piston weight

6. Cut extruded material at timed intervals

7. Weigh extruded samples to calculate melt flow rate

Mechanical Testing Equipment

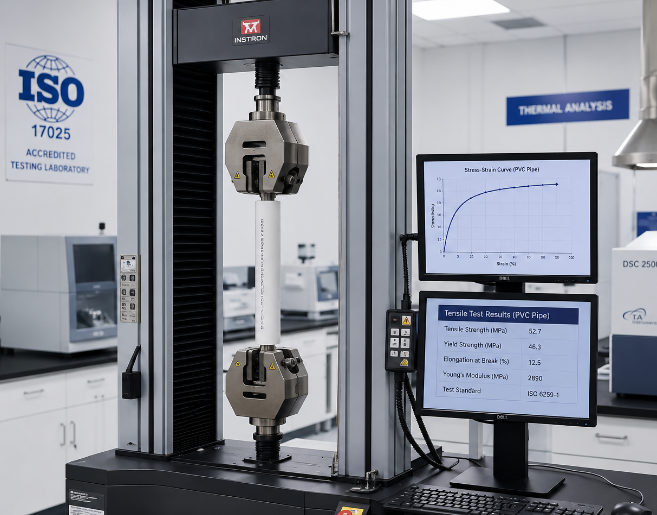

Universal Testing Machines: Apply controlled tensile, compression, or bending loads while measuring force and displacement for mechanical property determination.

Essential components:

• Load frames with appropriate capacity ranges

• Grips and fixtures suitable for PVC materials

• Extensometers for accurate strain measurement

• Environmental chambers for temperature-controlled testing

• Data acquisition systems for real-time monitoring

Thermal Analysis Instruments

Differential Scanning Calorimetry (DSC): Measures heat flow during thermal transitions, identifying glass transition temperature, melting behavior, and thermal stability.

Thermogravimetric Analysis (TGA): Continuously measures mass during controlled heating, providing decomposition temperatures and component quantification.

VICAT Softening Point Testers: Determine temperature at which standardized needle penetrates sample under specified load, indicating heat resistance.

Laboratory Applications of PVC Testing

Polymer Science Research

PVC powder serves as base material for studying polymerization behavior, additive effects, and structure-property relationships. Researchers evaluate how different formulations impact flexibility, hardness, durability, and processing characteristics.

Materials Testing

PVC provides reliable reference material for mechanical testing including tensile strength, impact resistance, and elongation studies. Predictable behavior makes it suitable for method validation and equipment calibration.

Coating Development

When blended with other polymers or reinforcing materials, PVC enables assessment of performance characteristics relevant to protective coatings, flooring systems, and composite applications.

Electrical Testing

Dielectric properties make PVC suitable for electrical insulation testing in compliance laboratories focused on product safety and performance verification.

Safety and Handling Considerations

Laboratory Safety Protocols

Ventilation Requirements: Handle PVC powder in well-ventilated areas to prevent inhalation of fine particles that could pose respiratory hazards.

Personal Protective Equipment: Use gloves, laboratory coats, and safety glasses during handling, processing, and testing operations.

Temperature Control: Maintain processing temperatures within recommended limits to prevent thermal degradation. Decomposition releases hydrogen chloride gas, a hazardous substance requiring proper ventilation and emergency procedures.

Storage and Labeling: Clear labeling and proper storage maintain safety and traceability, particularly important in shared laboratory environments.

Environmental and Regulatory Compliance

Waste Disposal: Follow local regulations for PVC waste disposal. Recycling options exist for many PVC materials, supporting sustainability objectives.

Documentation Requirements: Certificates of analysis, safety data sheets, and technical specifications support regulatory compliance and quality management systems.

Restrictions and Standards: Be aware of regulations restricting certain additives (phthalates, heavy metals) in specific applications such as toys, medical devices, and food contact materials.

Quality Control and Documentation

Quality Assurance Programs

Incoming Material Testing: Verify PVC materials meet specifications before processing, preventing downstream quality issues.

In-Process Testing: Monitor critical parameters during manufacturing to detect and correct variations before they affect product quality.

Final Product Testing: Confirm finished products meet performance specifications and regulatory requirements before release.

Statistical Process Control: Use testing data to monitor process stability and identify trends requiring corrective action.

Documentation Requirements

Test Reports: Detailed reports including test methods, equipment calibration, environmental conditions, and results with statistical analysis.

Certificates of Analysis: Documentation of material properties and compliance with purchase specifications.

Calibration Records: Equipment calibration certificates and maintenance records ensuring measurement accuracy and traceability.

Quality Management Systems: Documentation supporting ISO 9001, IATF 16949, or other quality management system requirements.

Benefits of Comprehensive PVC Testing

Product Quality: Testing ensures consistent material properties and product performance, building customer confidence and brand reputation.

Regulatory Compliance: Documented testing demonstrates conformance with applicable standards, facilitating market access and certification.

Process Optimization: Detailed characterization enables manufacturing process optimization for improved efficiency and reduced waste.

Risk Mitigation: Early detection of quality issues prevents costly recalls, warranty claims, and liability exposure.

Innovation Support: Testing provides data for developing new formulations, evaluating sustainable alternatives, and expanding into new applications.

Market Differentiation: Certified test reports and quality documentation distinguish products in competitive markets.

Choosing Testing Laboratory Services

Laboratory Qualifications

Accreditations: Look for ISO/IEC 17025 accreditation, ENAC, COFRAC, NADCAP, or other recognized accreditations demonstrating technical competence and quality management.

Industry Experience: Laboratories with extensive PVC testing experience across applications including construction, medical devices, packaging, and consumer products.

Technical Capabilities: Comprehensive analytical fleet including thermal analysis, mechanical testing, chemical analysis, and specialized PVC characterization methods.

Quality Systems: Robust quality control procedures, equipment calibration programs, and documented methods ensuring reliable results.

Service Considerations

Turnaround Time: Timely results supporting production schedules and quality control requirements.

Technical Support: Expert interpretation of results and recommendations for material selection, process optimization, and problem resolution.

Custom Solutions: Flexibility to develop tailored analytical strategies addressing specific industrial challenges and application requirements.

Global Capabilities: Services available across regions with consistent quality and technical support for international operations.
