Thermally conductive material testing

What Is Thermally Conductive material testing?

Thermally conductive material testing measures a material's ability to conduct, store, or resist heat — properties that determine whether a component will insulate, conduct, or simply withstand temperature changes in service. The core property is thermal conductivity (k-value), measured in W/(m·K), which quantifies how efficiently heat passes through a material under a given temperature gradient.

Thermal conductivity is calculated from Fourier's law:

k = Q · L / (A · ΔT)

Where:

• Q = heat transfer through the material (W)

• L = thickness of the material (m)

• A = cross-sectional area (m²)

• ΔT = temperature difference across the specimen (K)

Beyond thermal conductivity, comprehensive thermal testing also evaluates thermal diffusivity (how quickly heat spreads), specific heat capacity (heat storage ability), and thermal resistance (insulation effectiveness). Accurate measurement of these properties is essential for modeling and managing heat in every industry from electronics to aerospace.

Why Is Thermal Conductivity Testing Important?

Thermal conductivity testing directly impacts product reliability, energy efficiency, and safety. Materials that cannot manage heat effectively fail prematurely, consume excess energy, or create safety hazards.

Key reasons thermal conductivity testing matters:

• Material selection — Determines which materials conduct or insulate heat effectively for a given application, from CPU heat sinks to building insulation

• Electronics reliability — Prevents overheating in CPUs, GPUs, and batteries by ensuring efficient heat dissipation through thermal interface materials (TIMs)

• Energy efficiency — Assesses insulation materials (aerogels, fiberglass, foams) to reduce energy loss in buildings and industrial processes

• Aerospace safety — Tests thermal protection systems such as spacecraft heat shields and engine components

• Quality control — Verifies manufacturing consistency and detects defects like voids or delamination that degrade thermal performance

• R&D innovation — Supports development of advanced materials including graphene composites, phase-change materials, and high-conductivity polymers

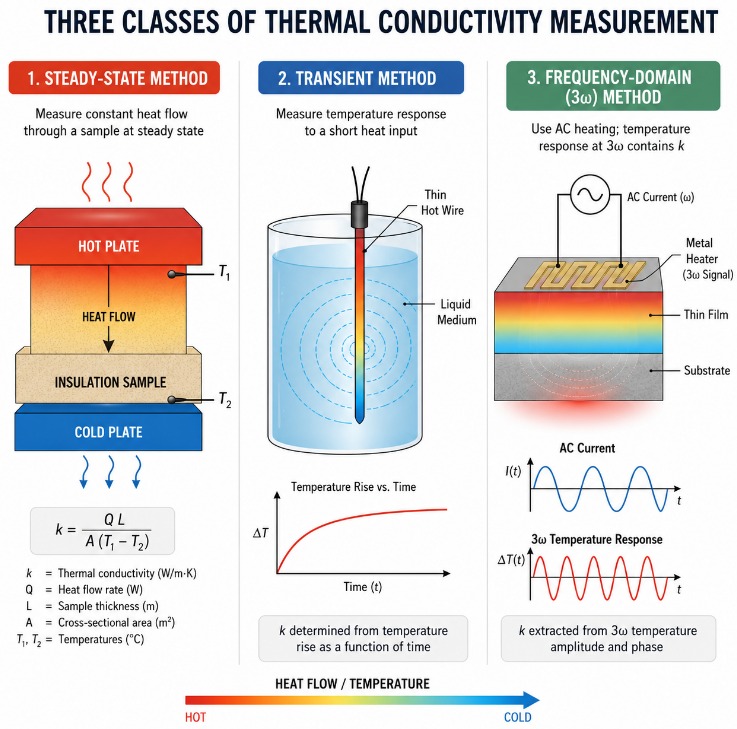

What Are the Three Main Classes of Thermal Conductivity Measurement?

All thermal conductivity measurement techniques fall into three fundamental classes, each suited to different material types, temperature ranges, and accuracy requirements.

Steady-State Methods

Steady-state techniques measure thermal conductivity after the sample has reached thermal equilibrium — when temperature no longer changes with time. A known heat flux is applied to one side of the sample, and the resulting temperature difference across a known thickness is measured once stable.

Advantages: Signal analysis is straightforward; constant signals mean simple calculations.

Disadvantages: Requires well-engineered experimental setups to minimize radiative and convective heat losses. Reaching steady state takes time (often 30+ minutes per measurement).

Best for: Insulation materials, building materials, low-to-medium conductivity solids.

Time-Domain (Transient) Methods

Transient techniques measure thermal properties during the heating process — tracking how temperature changes as a function of time after applying a heat pulse or step input.

Advantages: Much faster than steady-state methods; no need to wait for equilibrium; smaller sample sizes.

Disadvantages: Mathematical analysis of time-dependent data is more complex.

Best for: Liquids, pastes, powders, small samples, and materials across a wide conductivity range.

Frequency-Domain Methods

Frequency-domain techniques apply periodic (AC) heating at controlled frequencies and analyze the amplitude and phase delay of the thermal response. The 3ω-method is the most prominent example.

Advantages: Minimizes radiation effects; well-suited for thin films and nanomaterials; excellent temperature-dependent measurements.

Disadvantages: Requires thin-film patterning expertise and specialized equipment.

Best for: Thin films, nanomaterials, molten compounds at high temperatures.

How Does the Guarded Hot Plate Method Work?

The guarded hot plate is the primary reference method for measuring thermal conductivity of insulation materials. It operates on the steady-state principle and is standardized under ASTM C177 and ISO 8302.

How it works:

1. A flat electrically heated plate is sandwiched between two identical samples

2. A guard ring surrounds the main heater to ensure one-dimensional (axial) heat flow

3. Power to the main heater is adjusted until steady-state is reached

4. Thermal conductivity is calculated from the measured heat flux, sample thickness, and temperature difference

Key features:

• Considered the most accurate method for low-conductivity materials (insulators)

• Temperature range typically from −180°C to over 600°C

• Requires large, flat, uniform samples

• Measurement time is long due to the need for thermal equilibrium

What Is the Heat Flow Meter Method?

The heat flow meter (HFM) is the most widely used steady-state method for routine thermal conductivity testing. It is standardized under ASTM C518, ISO 8301, JIS A1412, and DIN 12667.

How it works:

1. A sample is held under compressive load between two polished metal plates at different temperatures

2. Heat flows from the hot plate through the sample to the cold plate

3. A calibrated heat flux transducer (typically on the cold side) measures the heat flow

4. Thermal conductivity is calculated from the heat flux, sample thickness, and temperature difference

Guarded Heat Flow Meter variation adds a guard furnace around the test stack to reduce lateral heat loss, improving accuracy — especially for anisotropic materials.

Key features:

• Faster and simpler than the guarded hot plate

• Suitable for low-to-medium conductivity materials (0.01 to ~10 W/m·K)

• Limited by interfacial resistance between specimen and plates

• Requires calibration with reference materials



How Does the Transient Hot Wire Method Measure Conductivity?

The transient hot wire (THW) method is one of the most accurate techniques for measuring thermal conductivity of fluids. It is standardized under ASTM D5930 for engine coolants and related fluids.

How it works:

1. A thin vertical metal wire (typically platinum) is immersed in the sample

2. A step voltage is applied, causing the wire to heat up

3. The wire acts as both heating element and resistance thermometer

4. Temperature rise is recorded as a function of time

5. Thermal conductivity is derived from the slope of temperature versus ln(time)

Key features:

• Extremely fast — measurements complete in approximately 1 second

• No convection artifacts — the short measurement time eliminates convective heat transfer

• No calibration required — fully developed theoretical model

• Covers gases, liquids, solids, nanofluids, and refrigerants across wide temperature and pressure ranges

• Most academic sensors use two identical wires of different lengths to compensate for end effects

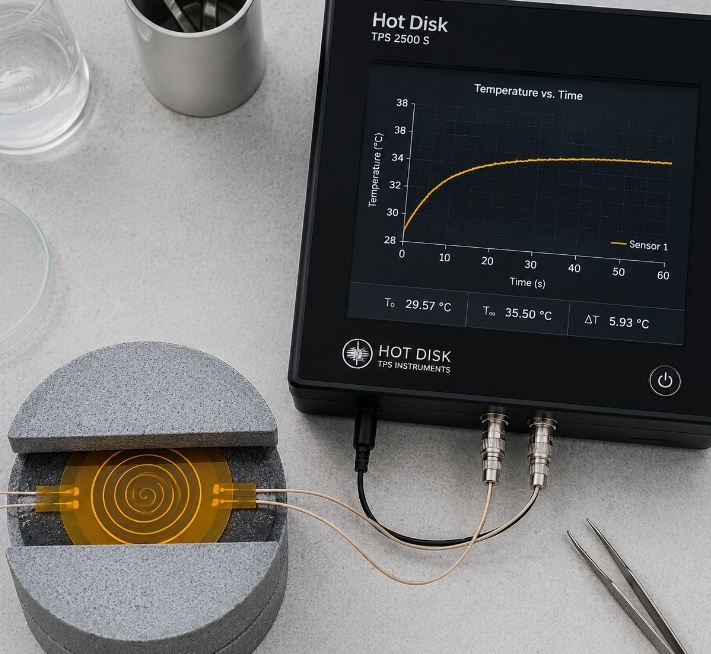

What Is the Transient Plane Source (TPS) Method?

The transient plane source (TPS) method, also known as the Hot Disk method, measures thermal conductivity, diffusivity, and specific heat capacity simultaneously. It is standardized under ISO 22007-2 and covers a thermal conductivity range of 0.01 to 500 W/m·K.

How it works:

1. A flat double-spiral nickel sensor, encapsulated between two Kapton polyimide films, is sandwiched between two sample halves

2. A constant electrical power passes through the nickel spiral, raising the sensor temperature

3. Heat dissipates into the sample on both sides at a rate dependent on the material's thermal properties

4. By recording the temperature versus time response, all three thermal transport properties are calculated

Modified Transient Plane Source (MTPS) is a one-sided variation where the heating element is mounted on a backing that provides mechanical support and thermal insulation. This enables single-sided measurements without modifying the sensor-sample assembly — ideal for large, attached, or in-situ samples.

Key features:

• Works on solids, liquids, pastes, and thin films

• Tests both isotropic and anisotropic materials

• No calibration required for absolute measurements

• Extended testing of heterogeneous materials is possible with proper sensor size selection

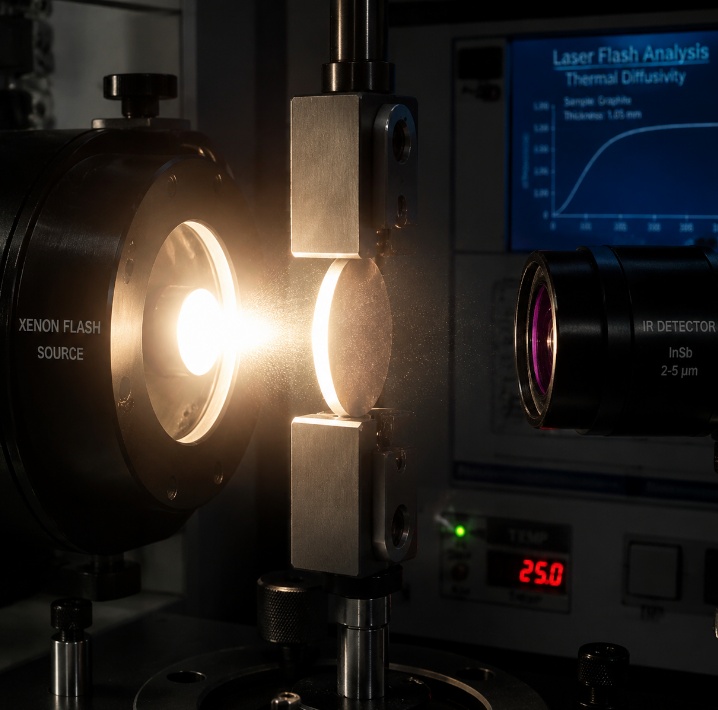

How Does the Laser Flash Method Determine Thermal Conductivity?

The laser flash (or xenon flash) method is the dominant technique for measuring thermal diffusivity at high temperatures. It is standardized under ASTM E1461 and ISO 22007-4, covering a temperature range of −120°C to 2800°C.

How it works:

1. A thin disc specimen is coated with graphite (and sometimes gold) to ensure uniform energy absorption

2. A short laser or xenon pulse strikes the front face of the disc

3. The temperature rise on the rear face is recorded over time using an infrared detector

4. Thermal diffusivity is determined from the time-temperature curve

Thermal conductivity is then calculated indirectly:

k = α · Cₚ · ρ

Where:

• α = thermal diffusivity (from laser flash measurement)

• Cₚ = specific heat capacity (from DSC or flash method)

• ρ = density (from literature or measurement)

Key features:

• Very fast measurement (seconds per temperature point)

• Small sample size (typically 25 mm diameter discs)

• Extremely wide temperature range

• Requires three separate property determinations for conductivity calculation

• Not suitable for highly transparent or highly porous materials without special preparation

What Is the 3-Omega Method and When Is It Used?

The 3ω-method is the premier technique for measuring thermal conductivity of thin films and nanomaterials. It operates in the frequency domain and is considered the best pseudo-contact method available.

How it works:

1. A thin metal line (wire or film) is deposited on the sample surface

2. The metal line serves as both resistive heater and resistance temperature detector (RTD)

3. AC current at frequency ω drives the heater, producing Joule heating at frequency 2ω

4. The temperature oscillation modulates the heater resistance, creating a voltage component at frequency 3ω

5. By measuring the amplitude and phase of the 3ω voltage across a range of frequencies, thermal conductivity is extracted from the slope of ΔT versus log(ω)

Key features:

• Minimizes radiation effects — advantageous for high-temperature measurements

• Ideal for thin films where bulk methods are not applicable

• Provides temperature-dependent conductivity with relative ease

• Requires expertise in thin-film patterning and microlithography

Frequency-domain hot wire variation combines the transient hot wire with 3ω principles to measure thermal conductivity of solids and molten compounds from room temperature to 800°C. By operating in the frequency domain, it rejects ambient temperature fluctuations, minimizes radiation errors, and limits convection — particularly valuable for high-temperature liquids where steady-state and time-domain measurements produce inconsistent results.

How Do You Choose the Right Testing Method?

No single method works for all materials and all conditions. The right choice depends on the material type, conductivity range, sample geometry, temperature range, and required accuracy.

Material Type	Recommended Method	Key Standard
Insulation materials (low k)	Guarded Hot Plate, Heat Flow Meter	ASTM C177, ASTM C518, ISO 8302
Polymers & composites	TPS (Hot Disk), HFM	ISO 22007-2, ASTM C518
Metals & high-k solids	Laser Flash, TPS	ASTM E1461, ISO 22007-4
Liquids & nanofluids	Transient Hot Wire	ASTM D5930
Thin films & coatings	3ω-method, TDTR	—
Pastes & loose powders	TPS, Transient Hot Bridge	ISO 22007-2, ASTM D5930
Building materials	Heat Flow Meter	ASTM C518, ISO 8301
High-temperature ceramics	Laser Flash	ASTM E1461

Decision factors:

• Conductivity range: Low-k insulators → steady-state; high-k metals → laser flash

• Sample size: Small/thin specimens → laser flash or 3ω; large flat specimens → HFM

• Speed: Transient methods are faster; steady-state methods are slower but more established

• Direct vs. indirect: HFM and guarded hot plate measure k directly; laser flash requires diffusivity + Cp + density

• Temperature range: Extreme temperatures (>1000°C) → laser flash; ambient conditions → most methods suitable

What Standards Govern Thermal Conductivity Testing?

ASTM Standards

Standard	Method	Application
ASTM C177	Guarded Hot Plate	Thermal conductivity of insulation
ASTM C518	Heat Flow Meter	Steady-state thermal transmission
ASTM E1461	Laser Flash	Thermal diffusivity of solids
ASTM D5930	Transient Hot Wire	Thermal conductivity of plastics and fluids
ASTM C1113	Hot Wire	Thermal conductivity of refractories

ISO Standards

Standard	Method	Application
ISO 8302	Guarded Hot Plate	Thermal resistance and conductivity of insulation
ISO 8301	Heat Flow Meter	Steady-state thermal transmission
ISO 22007-2	Transient Plane Source	Thermal conductivity and diffusivity of plastics
ISO 22007-4	Laser Flash	Thermal diffusivity and conductivity of plastics
ISO 8894	Hot Wire	Thermal conductivity of refractory materials

Other Standards

Standard	Scope
DIN 12667	Thermal conductivity of building materials (HFM)
DIN EN 993-15	Thermal conductivity of refractories (hot wire)
JIS A1412	Thermal resistance and conductivity (HFM, Japan)
JEDEC / IPC	Thermal management of PCBs and semiconductor packages
MIL-STD-810	Environmental engineering considerations (thermal shock)
DO-160	Environmental conditions for airborne equipment

How Is Thermal Conductivity Testing Applied Across Industries?

Electronics and Semiconductors

Modern electronic devices generate enormous heat densities. Thermal conductivity testing ensures that thermal interface materials (TIMs), heat spreaders, and encapsulants effectively dissipate heat from CPUs, GPUs, power electronics, and battery packs. JEDEC and IPC standards govern thermal management testing for PCBs and semiconductor packages.

Building and Construction

Heat flow meter testing per ASTM C518 and ISO 8301 is the backbone of building energy efficiency. It evaluates insulation materials, concrete, glass, and composite wall systems to ensure compliance with building codes and green certification programs such as LEED.

Aerospace and Defense

Thermal protection systems for spacecraft re-entry, engine components, and braking systems must withstand extreme temperatures. Testing per MIL-STD-810 and DO-160 validates materials under thermal shock, cyclic heating, and sustained high-temperature exposure.

Automotive and Electric Vehicles

Battery thermal management is critical for EV safety and range. Thermal conductivity testing evaluates battery pack materials, cooling system components, and thermal barrier coatings to prevent thermal runaway.

Energy Systems

Heat exchangers, phase-change materials, thermal storage systems, and geothermal applications all depend on accurate thermal property data. Ground Thermal Response Testing (TRT) uses modified transient line source methods to measure ground thermal conductivity for geothermal heat pump system design.

Manufacturing and Quality Control

Batch-to-batch consistency in ceramics, metals, composites, and polymers is verified through routine thermal conductivity testing. Deviations in k-value can indicate voids, delamination, incorrect composition, or inadequate processing.
