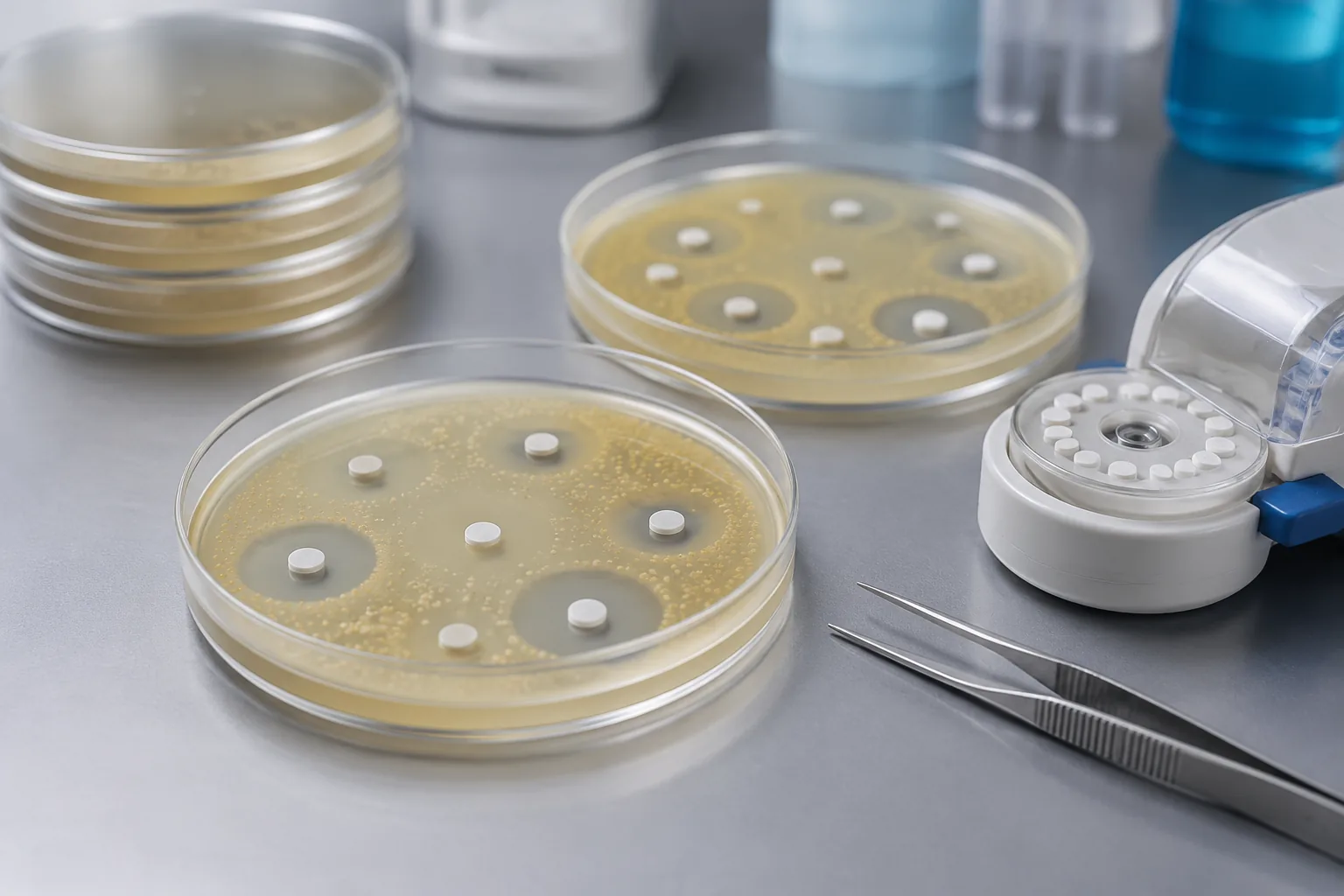

The inhibition zone test is the laboratory measurement of the clear halo ("zone of inhibition") that forms around an antimicrobial agent on a microbe-seeded agar plate, where the agent has diffused outward at a concentration high enough to prevent microbial growth. The physical principle is one and the same — diffusion of an antimicrobial through agar creating a growth-free zone whose diameter reflects potency — but in compliance practice the test is not one test under one standard. It is the same principle applied across four different applications, each governed by its own standard: culture-medium quality control (GB 4789.28-2024), disinfectant efficacy (GB/T 38499 and the 38502/38505 carrier series), antimicrobial-product performance (GB/T 31402, ISO 22196), and clinical antibiotic susceptibility (CLSI / EUCAST). Identifying which application — and therefore which standard — applies is the first step of the test.
The One Principle Behind the Four Applications
On a petri plate seeded with a target microorganism, an antimicrobial agent placed at a point source diffuses radially through the agar. Its concentration is highest at the source and falls off with distance. At the radius where the concentration drops below the microbe's minimum inhibitory concentration (MIC), growth resumes; inside that radius, growth is inhibited, producing a clear circular zone. The diameter of that zone is the measured result, and it is indicative of potency: a larger zone means the agent is more effective against that microbe at that dose, a zero zone means resistance.
What changes across the four applications is not the principle but the compliance question the zone answers and the standard that sets the method and the interpretation:
| Application | Question the zone answers | Standard |
|---|---|---|
| Culture-medium QC | Does this batch of medium grow the reference strain correctly (with the expected inhibition pattern)? | GB 4789.28-2024 |
| Disinfectant efficacy | How effective is this disinfectant at inhibiting/killing a target organism? | GB/T 38499 / 38502 / 38505 |
| Antimicrobial product | Does this treated material (plastic, ceramic, textile) actually inhibit bacteria on its surface? | GB/T 31402 / ISO 22196, GB/T 21510 |
| Clinical AST | Is this patient's isolate susceptible or resistant to this antibiotic? | CLSI M02/M100, EUCAST |
A food lab running media QC, a disinfectant manufacturer claiming efficacy, a plastics firm selling an "antibacterial" product, and a hospital running susceptibility tests all read an inhibition zone — but each reports against a different standard with a different interpretation. Conflating them is the most common error.
Application 1 — Culture-Medium Quality Control (GB 4789.28-2024)
In food and clinical microbiology, the agar media used for pathogen detection must themselves be quality-controlled, and the inhibition-zone pattern of a reference strain against a control disc is one of the QC indicators. The governing standard is GB 4789.28-2024 (Quality Requirements for Culture Media and Reagents), which replaced GB 4789.28-2013 and is the current food-safety-standard edition. The 2024 revision adjusted the evaluation indicators and, notably, replaced the 21 foreign reference strains of the 2013 edition with domestic CMCC and CICC strains to lower purchase difficulty and cost. A current media-QC report cites GB 4789.28-2024, and the inhibition-zone diameter of a reference disc against a reference strain is checked against the standard's expected value.
Application 2 — Disinfectant Efficacy (GB/T 38499, 38502, 38505)
For disinfectants, the inhibition-zone / carrier methods evaluate whether the product inhibits or kills a target organism. The relevant standards form a disinfectant-evaluation series:
| Standard | Method |
|---|---|
| GB/T 38499-2020 | Suspension quantitative bactericidal test |
| GB/T 38502-2020 | Carrier bactericidal test |
| GB/T 38505-2020 | Bactericidal effect on porous carriers |
Some of these are suspension or carrier kill tests (log-reduction) rather than zone tests per se, but the inhibition-zone variant is used for the diffusion-based screening of antimicrobial activity in disinfectant formulation. The result is reported as the zone diameter or as a kill-rate, against the product's claimed efficacy.
Application 3 — Antimicrobial Product Performance (GB/T 31402 / ISO 22196)
For materials treated to be antimicrobial — antibacterial plastics, antimicrobial ceramics, treated metals, textiles — the inhibition-zone (or surface-contact) test verifies that the treated surface actually inhibits bacterial growth. The governing standards:
- GB/T 31402 (equivalent to ISO 22196) — measurement of antibacterial activity on plastics and other non-porous surfaces (the film-contact method, often read alongside zone methods).
- GB/T 21510 — antibacterial ceramics.
- Textile and metal antimicrobial-performance standards by material.
This is the regime for an "antibacterial" product claim: the zone (or the surface-activity result) must exceed the standard's threshold for the product to carry the claim, and the report cites the material-specific standard.
Application 4 — Clinical Antibiotic Susceptibility (CLSI / EUCAST)
The application the search results focus on almost exclusively is clinical antibiotic susceptibility testing (AST) — the Kirby-Bauer disc-diffusion method developed by W. Kirby and A. Bauer, WHO-approved in 1961. A paper disc infused with a defined antibiotic is placed on a plate seeded with the patient's bacterial isolate, and after incubation the zone diameter is compared against the CLSI (M02/M100) or EUCAST breakpoint tables to classify the isolate as Susceptible (S), Intermediate (I), or Resistant (R) to that antibiotic. This is the application that drives antibiotic-treatment decisions in clinical microbiology. The standards here are CLSI and EUCAST (clinical guidelines), not GB — clinical AST is governed by international clinical-microbiology bodies.
The Three Method Variants
The inhibition zone is generated by one of three physical configurations, each suited to a different sample type:
| Variant | How the agent is delivered | Typical use |
|---|---|---|
| Paper disc (Kirby-Bauer) | Antibiotic-impregnated filter-paper disc laid on the agar | Clinical AST (CLSI/EUCAST), media QC |
| Oxford cup (cylinder) | Stainless-steel cylinder placed on the agar, filled with the liquid agent | Antimicrobial-peptide and disinfectant screening (research, BSF AMP studies) |
| Agar well (punch) | A hole cut in the agar, filled with the agent | Antimicrobial extracts, crude samples |
The disc method is the clinical-AST and media-QC standard; the Oxford cup and well methods dominate research and early-stage antimicrobial screening because they handle liquid samples of unknown concentration. The method variant is chosen by the sample, and the standard specifies which is acceptable.
Reading the Zone: Interpretation by Application
The same zone diameter means different things in different applications:
| Application | Interpretation |
|---|---|
| Media QC (GB 4789.28) | Zone matches the standard's expected value → medium passes |
| Disinfectant (GB/T 38499+) | Zone ≥ claim, or kill-rate ≥ claim → product meets efficacy |
| Antimicrobial product (GB/T 31402) | Activity ≥ standard threshold → "antibacterial" claim valid |
| Clinical AST (CLSI/EUCAST) | Zone diameter → S / I / R by the breakpoint table |
A zone of, say, 20 mm could mean a passing medium, an effective disinfectant, a valid antibacterial claim, or a susceptible isolate — depending entirely on the standard and the interpretation framework applied. This is why a zone result is meaningless without its governing standard.
Why the Search Results Are Off the Compliance Intent
The search results for "inhibition zone test" are dominated by two clusters that do not map the compliance framework:
- Zone-reader instrument vendors (Synbiosis Synoptics — ProcScan, ProtoCOL) explain the Kirby-Bauer method and the S/I/R interpretation competently, but only for clinical AST (the application their readers serve), and cite no GB standard.
- Academic research papers (e.g., the black-soldier-fly antimicrobial-peptide IZA study) examine the method's physics and standardization for a research compound, not a compliance framework.
- Textbook mechanism explainers describe how antibiotics kill bacteria.
None tells a food lab, a disinfectant maker, a product manufacturer, or a quality controller which GB standard applies to their inhibition-zone result. That compliance mapping is what this article provides.
Our Testing Capabilities
Beijing ZKGX Research conducts inhibition-zone testing across the four application regimes:
- Culture-medium QC (GB 4789.28-2024): reference-disc inhibition-zone against CMCC/CICC reference strains, for food-microbiology medium quality control.
- Disinfectant efficacy (GB/T 38499 / 38502 / 38505): suspension and carrier bactericidal tests, with zone-based screening, against the product's efficacy claim.
- Antimicrobial-product performance (GB/T 31402 / ISO 22196, GB/T 21510): surface antibacterial activity for plastics, ceramics, textiles, and metals, for "antibacterial" product-claim validation.
- Clinical-AST support: Kirby-Bauer disc-diffusion with CLSI/EUCAST S/I/R interpretation where the application is clinical.
- Method variants: paper disc (Kirby-Bauer), Oxford cup, and agar well, each applied per the standard's specification.
- Deliverable: a test report identifying the application regime, the governing standard (GB 4789.28-2024 / GB/T 38499 / GB/T 31402 / CLSI), the method variant, the organism, the zone diameter(s), and the interpretation (pass/fail, efficacy, S/I/R) against the standard.
If you have a sample — a culture medium, a disinfectant, an antimicrobial product, or a clinical isolate — requiring an inhibition-zone test, contact our testing team to scope the application regime and the governing standard.
Frequently Asked Questions
What standard governns the inhibition zone test?
There is no single standard — the inhibition zone test is the same physical principle applied across four applications, each with its own standard. Culture-medium QC is under GB 4789.28-2024; disinfectant efficacy under GB/T 38499/38502/38505; antimicrobial-product performance under GB/T 31402 (ISO 22196) and GB/T 21510; and clinical antibiotic susceptibility under CLSI M02/M100 or EUCAST. The application determines the standard.
Is the inhibition zone test the same as the Kirby-Bauer test?
Kirby-Bauer is one method variant (the paper-disc diffusion method) used in clinical antibiotic susceptibility testing. The inhibition zone test is the broader principle — diffusion of an antimicrobial through agar producing a growth-free zone — which Kirby-Bauer applies to antibiotic discs on clinical isolates. Other variants (Oxford cup, agar well) and other applications (media QC, disinfectant efficacy, antimicrobial products) use the same principle under different standards.
What replaced GB 4789.28-2013?
GB 4789.28-2013 (Quality Requirements for Culture Media and Reagents) was replaced by GB 4789.28-2024. The 2024 edition adjusted the evaluation indicators and replaced the 21 foreign reference strains of the 2013 edition with domestic CMCC and CICC strains to lower purchase difficulty and cost. A current media-QC report cites GB 4789.28-2024.
What is the difference between the paper disc, Oxford cup, and agar well methods?
The paper disc (Kirby-Bauer) places an antibiotic-impregnated filter-paper disc on the agar — the clinical-AST and media-QC standard. The Oxford cup places a stainless-steel cylinder on the agar and fills it with the liquid agent — used for antimicrobial-peptide and disinfectant screening. The agar well cuts a hole in the agar and fills it — used for crude antimicrobial extracts. The variant is chosen by sample type, and the standard specifies which is acceptable.
What does the zone diameter tell you?
It depends on the application. In clinical AST (CLSI/EUCAST), the zone diameter classifies the isolate as Susceptible, Intermediate, or Resistant against a breakpoint table. In antimicrobial-product testing, the activity must exceed a standard threshold for the "antibacterial" claim to be valid. In media QC, the zone must match the standard's expected value for the reference strain. In disinfectant efficacy, the zone (or kill-rate) must meet the product's claim. The same millimetres mean different things under different standards.
