MIL-STD-810H Method 521.4: Icing/Freezing Rain Testing — An Engineer’s Practical Guide

What This Method Actually Does

MIL-STD-810H Method 521.4 evaluates one thing: whether your equipment can survive and operate after ice has formed on it. The ice can come from freezing rain, freezing drizzle, sea spray, or fog — any situation where supercooled water contacts a cold surface and accretes.

This is not a snow test. It does not simulate aircraft flying through supercooled clouds. It does not address frost, blowing snow, or slush. If those conditions matter for your product, you need different methods.

What Method 521.4 does provide is a controlled, repeatable way to answer a binary question: after ice accumulates to a specified thickness, does the equipment still work?

The method also evaluates de-icing systems and field-expedient ice removal techniques. If your product claims to shed ice or survive it, this is the test that proves it.

Why Icing Testing Matters

Ice is a mechanical threat disguised as a weather condition. A thin glaze layer can bind moving parts, add enough weight to unbalance a rotating antenna or control surface, and turn a walkway into a hazard. Thicker ice — 37 mm or more — can carry an adult male's weight and impose structural loads that designers rarely account for in static calculations.

For defense and marine equipment, the threat is real and well-documented. Ships operating in high latitudes accumulate hard rime from supercooled spray. Ground-based antennas and vehicles sit through freezing rain events that coat every exposed surface. Helicopter rotors and aerodynamic surfaces lose efficiency and stall margin as ice builds up.

The MIL-STD-810H standard recognizes that some equipment must operate while iced, while other equipment only needs to survive the ice and function after de-icing. Your test plan must specify which category applies. That decision drives every parameter in the test.

Types of Ice You Need to Know

The standard distinguishes two ice types, and the difference matters for test execution and product design.

Glaze Ice
Clear, smooth, dense (0.6 to 0.9 g/cm³). Forms when large droplets freeze slowly on a surface, allowing the water to spread before solidifying. Glaze is the structurally significant ice — harder to remove, heavier, and more adhesive. It forms in freezing rain conditions and is the primary threat this method is designed to replicate.

Glaze formation is favored by:

• Large droplet size

• Rapid water delivery rate

• Slight supercooling (surface temperature just below freezing)

• Slow dissipation of latent heat of fusion

Rime Ice
White or milky, opaque, granular. Density ranges from 0.2 g/cm³ (soft rime) to 0.5 g/cm³ (hard rime). Forms when small, supercooled droplets freeze instantly on impact, trapping air and creating a granular structure. Soft rime builds into the wind as feathery cones on edges and points. Hard rime is more compact, typical of ship superstructure icing from sea spray.

Rime formation is favored by:

• Small droplet size

• Slow accretion rate

• High degree of supercooling

• Rapid heat dissipation

For most equipment testing, glaze ice is the default target — it is harder to remove and structurally more demanding. If your product faces a marine environment, hard rime from sea spray may be the more representative condition.

How Thick Should the Ice Be?

The standard provides four reference thicknesses. These are not arbitrary — they represent real-world loading categories:

Thickness	Represents
6 mm (0.24 in)	General conditions, light loading
13 mm (0.5 in)	General conditions, medium loading
37 mm (1.5 in)	Heavy ground loading, marine mast loading
75 mm (3 in)	Extremely heavy ground loading, marine deck loading

A practical note from testing experience: laboratory-induced ice above 37 mm can support an adult male's weight. If your test plan calls for 75 mm accumulation, verify that your chamber floor and drainage can handle the ice load safely. Structural failure of the test setup is a real possibility at these thicknesses.

Choose the thickness based on the Life Cycle Environmental Profile (LCEP) for your equipment. If the LCEP places the equipment on a ship deck in North Atlantic winter conditions, 75 mm is appropriate. A ground vehicle antenna operating in temperate climates may only need 6 mm for light loading verification.

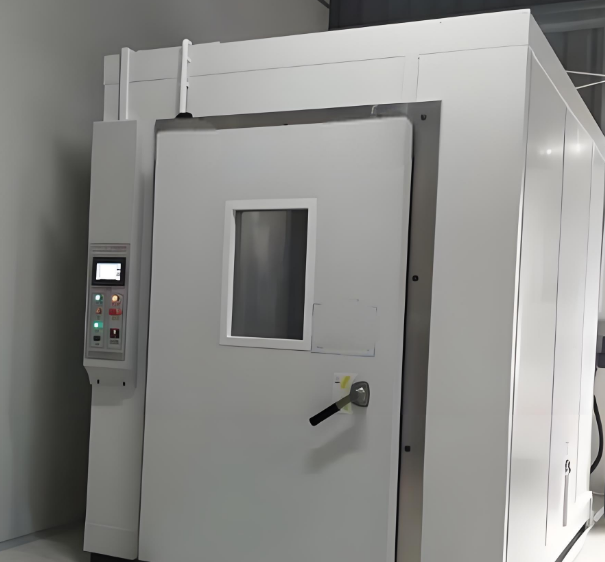

The Test Procedure, Step by Step

Method 521.4 has one procedure: ice accretion. But within that procedure, several parameters are yours to specify through the tailoring process. Here is the sequence with practical commentary at each stage.

Step 1: Stabilize the test item temperature at 0°C (-0/+2°C).

Do not start below freezing. If the test item surface is already frozen when water spray begins, droplets will freeze on contact without penetrating seams, cracks, and crevices. The result is superficial ice that does not represent the real failure mode — water ingress followed by freezing expansion. Starting at 0°C allows liquid water to work into openings before freezing locks everything in place.

Step 2: Deliver uniform, pre-cooled water spray for 1 hour.

This is the penetration phase. Water temperature between 0°C and 3°C is ideal; 5°C is acceptable. The delivery rate of 25 mm/h has been validated by previous testing. The goal is to soak the test item thoroughly before ice begins to form. Water that has not penetrated by the end of this hour will not penetrate later — once the chamber temperature drops, surface ice seals off access to interior spaces.

Step 3: Drop chamber air temperature to -10°C (14°F) and continue spraying until target ice thickness is reached.

This is where glaze ice forms. Maintain the water spray while the chamber cools. If you stop spraying to reach temperature faster, you will lose the continuous film of water that produces glaze; the ice will nucleate in patches and produce uneven results.

If glaze ice proves difficult to achieve, vary one parameter at a time:

• Air temperature no warmer than -2°C (28°F) for glaze formation

• Adjust water temperature, spray rate, or nozzle distance

• Reduce droplet size if ice is forming too granular (tending toward rime)

Use wind or side spray nozzles to coat vertical surfaces. Minimize wind velocity to maintain uniform accretion. Uneven ice distribution invalidates the thickness measurement.

Measure ice thickness using copper bars or tubes placed in the same spray path as the test item. For tall structures like antenna masts, place reference bars at multiple heights — accretion rates vary with distance from the nozzles.

Step 4: Hold at the cold temperature for a minimum of 4 hours.

This is the hardening soak. Ice formed by spraying is initially softer than naturally aged ice. The 4-hour hold allows the ice to stabilize and reach a condition more representative of field accumulation. After the soak, perform operational checks. Document everything with photographs.

Step 5: Remove ice if required or if Step 4 resulted in failure.

Ice removal methods must match what is actually available in the field. If the operator carries an ice scraper and a can of de-icing spray, that is what you use. If the equipment has built-in heating elements, activate them per the operating manual. Do not use laboratory conveniences — hot water, heat guns, chemical solvents — unless they are part of the field expedient kit.

Record the effectiveness of each removal method. Note any damage caused by the removal process itself — scrapers gouging seals, heaters delaminating coatings, de-icing fluid corroding connectors. These are valid test findings.

Step 6: Attempt operation at the specified low operating temperature.

Ice removal may leave residual water that refreezes. The equipment may be cold-soaked to a temperature below its specified operating minimum. This step verifies that the system functions after the complete icing and recovery sequence, not just immediately after de-icing in the chamber.

Step 7: Repeat Steps 3 through 6 for additional ice thicknesses if required.

Many test plans specify multiple thicknesses on the same test item — for example, 6 mm for operational verification and 37 mm for survival/storage verification. Sequence from thinnest to thickest to avoid damaging the test item early.

Step 8-9: Return to standard ambient conditions and perform post-test operational check.

Compare post-test performance to pretest baseline data. Document all deviations.

Critical Test Parameters You Control

Water Delivery Method

Three configurations are acceptable, provided the spray is uniform:

• Nozzle arrays directed at top, sides, front, and rear

• Overhead nozzles spraying straight down, with optional wind or hand-held side spray

• Single nozzle covering all appropriate surfaces

The limitation of a single nozzle is coverage consistency on large or complex test items. For anything larger than a small component, a nozzle array produces more uniform ice.

Droplet Size

Nominal droplet diameter of 1.0 mm to 1.5 mm has produced satisfactory glaze ice in multiple facilities. Smaller droplets tend toward rime; larger droplets may splash off the surface before freezing. Adjust based on your chamber geometry and nozzle characteristics.

Surface Preparation

Clean all exterior surfaces thoroughly before the test. Oil films, grease, mold release agents, and even heavy fingerprints prevent ice adhesion. The ice will sheet off instead of bonding, and the test will under-report mechanical effects. If the equipment normally operates with a specific surface treatment (paint, anodizing, conformal coating), test it in that condition.

Ice Thickness Measurement

Do not rely on visual estimation. Install reference gauges — copper bars or tubes of appropriate diameter — in the spray path. Measure ice thickness on the gauges, not the test item, to avoid disturbing the ice layer during the test. Document gauge placement in the test plan so the measurements are traceable.

Operational Considerations That Shape Your Test Plan

Operate while iced, or operate after de-icing?

This is the first decision in tailoring. Some equipment — an antenna radome with built-in heaters — must function throughout an icing event. Other equipment — an aircraft control surface — is de-iced before flight and only needs to survive the ice load without structural damage.

Specify the expected operating mode clearly. The pass/fail criteria flow from this decision. The standard does not define pass/fail for you; it is left to the customer and manufacturer to agree on what constitutes acceptable performance.

De-icing methods matter

If de-icing is part of the operational concept, test it. Built-in heating systems should be activated per normal procedures. Manual removal should use the tools included in the equipment's support kit. If the field manual says "use a plastic scraper," use a plastic scraper — not a metal one, not a heat gun. The test should expose whether the prescribed method actually works and whether it causes collateral damage.

Safety hazards

Iced equipment creates footing hazards. Place ice warning stickers on the equipment during testing if they would be present in the field. After the test, document any areas where ice accumulation created unexpected risks — horizontal surfaces that pooled water, drains that clogged and overflowed, ladder rungs that became unusable.

Design Recommendations from Testing Experience

Years of icing test experience have produced a set of practical design guidelines that can reduce icing vulnerability before testing begins:

Prevent water binding. Ice adhesion is the root of most mechanical failures. Heating elements on joints and moving surfaces prevent the initial bond from forming. If heaters are not feasible, select materials and coatings with low ice adhesion — hydrophobic surfaces reduce the force required for ice removal.

Add slopes to flat surfaces. Flat horizontal surfaces accumulate ice at the full precipitation rate. Adding even a slight incline promotes runoff before freezing. This is the same principle used on roofs in northern climates — the ice still forms, but it forms thinner and sheds more easily under its own weight.

Account for added weight in drive systems. Ice adds mass to moving parts. Motors, actuators, and linkages must be sized to handle the additional inertial load. A computational fluid dynamics (CFD) analysis combined with finite element modeling can predict ice distribution and the resulting torque requirements before physical testing begins.

Protect electromagnetic apertures. Ice changes the dielectric constant and surface conductivity of antenna radomes and lenses. Rime ice saturated with air causes significant signal reflection. Built-in heating elements embedded in the reflecting surface can maintain communication through an icing event. Commercial off-the-shelf solutions — heated domes, blower systems — are available if custom heaters are not practical.

Seal penetrations before water reaches them. The 1-hour pre-soak at 0°C is designed to expose poor sealing. Water that enters connectors, seams, or unsealed enclosures during this phase will freeze and expand when the temperature drops. The resulting damage — cracked housings, displaced seals, shorted circuits — is often misattributed to the ice load when the root cause is inadequate water sealing.

Common Test Pitfalls

Premature freezing. If the water droplets freeze in the air before hitting the test item, you get rime, not glaze. Adjust nozzle distance or water temperature to ensure the droplets reach the surface as liquid.

Uneven ice distribution. Large test items or those with complex geometry may accumulate ice unevenly. Place reference gauges at multiple locations and heights. If thickness varies by more than 20% across the test item, adjust nozzle positioning.

Inadequate hardening time. Skipping or shortening the 4-hour cold soak produces ice that is softer than field ice. The test item may pass when it should fail because the ice crumbles under load instead of resisting.

Using the wrong de-icing tools. The test should replicate field conditions, not laboratory convenience. If you use a heat gun when the operator only has a scraper, you have not validated the equipment's field survivability.

Ignoring post-test corrosion. Icing tests leave residual moisture. If the test item is not thoroughly dried and inspected after the post-test ambient checkout, corrosion can develop days or weeks later and be incorrectly attributed to a later test or to field use.

How to Specify This Test to a Laboratory

When you send a test request to a laboratory, include:

1. Ice type: Glaze or rime, with justification from the LCEP.

2. Ice thickness: Single value or sequence of values (e.g., 6 mm operational, 37 mm survival).

3. Operating mode: Operate while iced, operate after de-icing, or both.

4. De-icing method: Built-in systems, field expedients, or none.

5. Pass/fail criteria: What performance parameters must remain within specification during and after the test.

6. Test item configuration: Deployed, transport, or storage configuration. Orientation relative to spray nozzles.

7. Special considerations: Surfaces to protect from spray, instrumentation to monitor during test, safety requirements.

Standards and References

• MIL-STD-810H Method 521.4: The primary test standard.

• MIL-HDBK-310: Global climatic data for developing military products — use this to justify ice thickness and temperature selections.

• NATO STANAG 4370 / AECTP 300 Method 311: Allied environmental test procedures for icing, harmonized with MIL-STD-810.

• RTCA/DO-160 Section 24.0: Icing test for airborne equipment — applicable if the product is intended for aircraft installation.

• IEEE C37.30.1 Clause 8.5: Ice loading test for high-voltage switchgear — relevant for electrical equipment exposed to outdoor icing.
