benzo[a]pyrene testing

Table of Contents

• What is benzo[a]pyrene testing?
• The standard stack: GB 5009.265, EU 1881/2006, EPA 8270, ATSDR
• The PAH family: 16 EPA priority, EU PAH4, and the IARC classification
• BaP equivalents and potency equivalency factors (PEFs)
• Analytical method: HPLC-FLD and GC-MS
• Sample preparation: extraction, cleanup, and the matrix challenge
• Regulatory limits: EU 1881/2006 PAH4, GB 2762, and the BaP vs PAH4 shift
• FAQ
• Our benzo[a]pyrene testing capabilities

What is benzo[a]pyrene testing?

Benzo[a]pyrene (B[a]P, CAS 50-32-8, C₂₀H₁₂, MW 252.31) testing is the measurement of the concentration of B[a]P — the most toxicologically significant member of the polycyclic aromatic hydrocarbon (PAH) family and the IARC Group 1 carcinogen that serves as the reference compound for the entire PAH class — in a food, environmental, water, air, soil, tobacco, cosmetic, or consumer-product matrix. The output of a B[a]P test is a quantitative concentration reported against the applicable regulatory limit, and — increasingly — the concentration of the full PAH4 (B[a]P + benz[a]anthracene + benzo[b]fluoranthene + chrysene) or the 16-EPA-priority PAH panel, reported together because B[a]P alone is an insufficient marker for PAH contamination.

B[a]P is a five-ring PAH formed during incomplete combustion of organic matter — coal, oil, gas, wood, tobacco, charbroiled meat, cigarette smoke, vehicle exhaust, asphalt, coal tar, and creosote. It is the most-studied PAH, with the most-extensive toxicological database, and was selected as the IARC Group 1 carcinogen and the benchmark for the potency equivalency factors (PEFs) that express the carcinogenicity of the other PAHs as a fraction of B[a]P's potency. B[a]P is the dominant driver of PAH-related cancer risk in food, water, air, and soil.

The standards governing B[a]P testing span the Chinese GB 5009.265-2021 National food safety Standard — Determination of Polycyclic Aromatic Hydrocarbons in Foods (the Chinese HPLC-FLD and GC-MS method for 16 PAHs), the EU Commission Regulation (EC) No 1881/2006 (the maximum-level regulation, amended by Regulation (EU) 835/2011 to regulate both B[a]P and PAH4), the US EPA Methods 8100/8270/8310 (the environmental PAH methods), the ATSDR 2022 Guidance for calculating B[a]P equivalents (the US Agency for Toxic Substances and Disease Registry framework for PAH cancer-risk assessment), the GB 2762-2022 Contaminants in Food (the Chinese maximum-level regulation, B[a]P ≤ 5-10 µg/kg in oils and fats and smoked foods), and the EFSA 2008 scientific opinion that drove the EU shift from B[a]P-only to PAH4. A food product placed on the Chinese market must satisfy GB 2762-2022 (B[a]P); on the EU market, Regulation 1881/2006 as amended (B[a]P and PAH4); on the US market, the FDA action levels and the EPA methods for environmental assessment.

The standard stack: GB 5009.265, EU 1881/2006, EPA 8270, ATSDR

A complete B[a]P testing project draws on a stack of Chinese, EU, US, and international standards.

Family	Standard	Scope
GB 5009.265-2021	National Food Safety Standard — Determination of Polycyclic Aromatic Hydrocarbons in Foods	The Chinese national method for 16 PAHs in food; Method 1: HPLC-FLD; Method 2: GC-MS; applicable to grains, meat, seafood, oils and fats
GB 2762-2022	National Food Safety Standard — Contaminants in Foods	The Chinese maximum-level regulation; B[a]P ≤ 5 µg/kg in most oils and smoked foods; ≤ 10 µg/kg in some categories
EU Commission Regulation (EC) No 1881/2006	Setting maximum levels for certain contaminants in foodstuffs (amended by Regulation (EU) No 835/2011, No 1326/2024)	The EU maximum-level regulation; both B[a]P and PAH4 regulated since 2012; B[a]P ≤ 2 µg/kg and PAH4 ≤ 10 µg/kg in most oils; varies by food category
EU Regulation (EU) No 835/2011	Amending Regulation 1881/2006 as regards PAHs in foodstuffs	The amendment that introduced PAH4 (BaP + BaA + BbF + Chr) as the regulatory marker in addition to BaP alone
EPA Method 8100	Polynuclear Aromatic Hydrocarbons by HPLC	The US environmental method (HPLC-UV/FLD) for PAHs in waste, soil, water
EPA Method 8270	Semivolatile Organic Compounds by GC-MS	The US broad semi-volatile screen that includes the 16 priority PAHs
EPA Method 8310	Polynuclear Aromatic Hydrocarbons by HPLC	The US environmental HPLC-FLD method for PAHs in water
EPA Method 610	Polycyclic Aromatic Hydrocarbons (Clean Water Act)	The US wastewater method
EPA Method 550 / 550.1	Polycyclic Aromatic Hydrocarbons in Drinking Water	The US drinking water method (SPE + HPLC-FLD)
ATSDR 2022 Guidance	Calculating Benzo(a)pyrene Equivalents for Cancer Evaluations of Polycyclic Aromatic Hydrocarbons	The US ATSDR framework for B[a]P equivalents using OEHHA PEFs; the basis for cancer-risk assessment
EFSA 2008 Scientific Opinion	Polycyclic Aromatic Hydrocarbons in Food (EFSA Journal 724)	The scientific opinion that drove the EU shift from BaP-only to PAH4
IARC Monograph 92 / 100F	Chemical Agents and Related Occupations	The IARC classification of B[a]P as Group 1 carcinogen
ISO 15302	Animal and vegetable fats and oils — Determination of B[a]P	The international method for B[a]P in oils and fats
ISO 22959	Animal and vegetable fats and oils — Determination of PAHs by HPLC-FLD	The international HPLC-FLD method for the full PAH panel in oils

The single most consequential fact for a Chinese manufacturer is that GB 5009.265-2021 is the NMPA / SAMR-mandated method for PAHs in food and GB 2762-2022 is the maximum-level regulation. A food product placed on the Chinese market must satisfy GB 2762-2022 (B[a]P ≤ 5 µg/kg in oils; ≤ 10 µg/kg in some smoked foods); a product exported to the EU must satisfy the stricter PAH4 limit (PAH4 ≤ 10 µg/kg in oils, PAH4 ≤ 12-30 µg/kg in smoked meats).

The PAH family: 16 EPA priority, EU PAH4, and the IARC classification

The PAH family comprises over 100 individual compounds, but the regulatory and analytical focus is on a subset — the 16 EPA priority PAHs, the EU PAH4, and the IARC-classified carcinogenic PAHs.

PAH congener	Rings	IARC group	EPA priority (16)	EU PAH4	OEHHA PEF	GB 5009.265
Naphthalene	2	2B	✓	—	— (not in BaP equiv.)	✓
Acenaphthylene	3	—	✓	—	—	✓
Acenaphthene	3	3	✓	—	—	✓
Fluorene	3	3	✓	—	—	✓
Phenanthrene	3	3	✓	—	—	✓
Anthracene	3	3	✓	—	—	✓
Fluoranthene	4	3	✓	—	—	✓
Pyrene	4	3	✓	—	—	✓
Benz[a]anthracene (BaA)	4	2B	✓	✓	0.1	✓
Chrysene (Chr)	4	2B	✓	✓	0.01	✓
Benzo[b]fluoranthene (BbF)	5	2B	✓	✓	0.1	✓
Benzo[k]fluoranthene (BkF)	5	2B	✓	—	0.1	✓
Benzo[a]pyrene (BaP)	5	1	✓	✓	1.0	✓
Indeno[1,2,3-cd]pyrene (IcdP)	6	2B	✓	—	0.1	✓
Dibenz[a,h]anthracene (DahA)	5	2A	✓	—	2.4	✓
Benzo[ghi]perylene (BghiP)	6	3	✓	—	0.01	✓

The EU PAH4 — B[a]P + BaA + BbF + Chr — was defined by EFSA in 2008 as the most suitable marker for PAH contamination in food, based on the finding that B[a]P alone was present in only a fraction of the PAH-contaminated samples and that the PAH4 captured ~90 % of the PAH-related cancer risk. The EU shifted from the B[a]P-only regulation (pre-2012) to the dual B[a]P + PAH4 regulation (2012, Regulation EU 835/2011).

The OEHHA PEFs — the potency equivalency factors used by the ATSDR to calculate B[a]P equivalents — range from 0.01 (chrysene, 1/100th as potent as B[a]P) to 2.4 (dibenz[a,h]anthracene, 2.4× as potent as B[a]P). The PEF of 1.0 for B[a]P defines the benchmark; the PEF of 2.4 for DahA makes it the single most potent PAH per unit mass.

BaP equivalents and potency equivalency factors (PEFs)

The B[a]P equivalent is the ATSDR framework for expressing the combined carcinogenicity of a PAH mixture as a single value — the concentration of B[a]P that would produce the same cancer risk as the mixture.

Calculation (per the ATSDR 2022 Guidance):

Equation 1: BEC_i = x_i × PEF_i
Equation 2: BaP equivalent = Σ(BEC_i)

where:

• BEC_i is the B[a]P equivalent concentration of the i-th congener
• x_i is the measured concentration of the i-th congener
• PEF_i is the potency equivalency factor of the i-th congener (from the OEHHA table)
• The BaP equivalent is the sum across all congeners with PEFs

Example (from the ATSDR 2022 Guidance, Sample 1):

PAH congener	PEF	Measured (µg/kg)	BEC (µg-BaP/kg)
Benz[a]anthracene	0.1	60	6.0
Benzo[a]pyrene	1.0	100	100.0
Benzo[b]fluoranthene	0.1	190	19.0
Benzo[k]fluoranthene	0.1	135	13.5
Chrysene	0.01	80	0.8
Dibenz[a,h]anthracene	2.4	47	112.8
Indeno[1,2,3-cd]pyrene	0.1	<60 (non-detect)	6.0
BaP equivalent			258.1 µg-BaP/kg

Note that the dibenz[a,h]anthracene — despite being present at a lower concentration (47 µg/kg) than B[a]P (100 µg/kg) — contributes 112.8 µg-BaP/kg to the BaP equivalent (because of its PEF of 2.4), more than the B[a]P itself (100 µg-BaP/kg). The ATSDR framework captures this — a BaP-only analysis would have missed the DahA contribution.

The cancer risk is then calculated using the OEHHA oral cancer slope factor (CSF) for BaP of 1.7 (mg/kg/day)⁻¹ — the dose-response factor that converts the BaP equivalent dose to a cancer-risk estimate.

Analytical method: HPLC-FLD and GC-MS

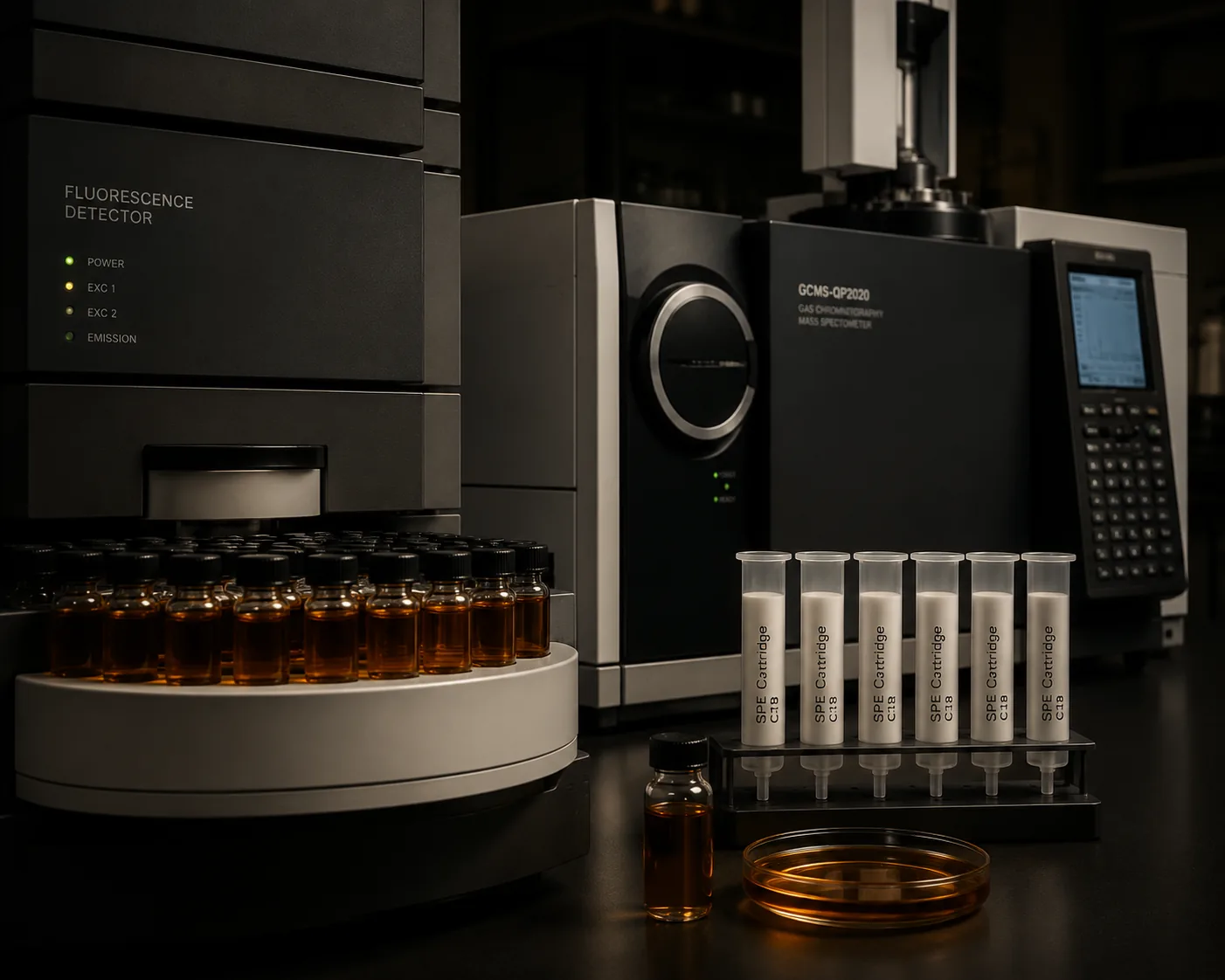

Two complementary analytical methods are used for B[a]P and the PAH panel — HPLC with fluorescence detection (HPLC-FLD) and gas chromatography with mass spectrometry (GC-MS).

Method	Standard	Principle	Detection limit (BaP)	Advantage
HPLC-FLD	GB 5009.265-2021 Method 1; EPA 8310; ISO 22959	Reversed-phase C18 HPLC; programmable-wavelength fluorescence detection (the excitation/emission wavelength changes per PAH congener, optimising sensitivity for each)	~ 0.1-0.3 µg/kg in food; ~ 0.01 µg/L in water	Highest sensitivity; the preferred method for food and water
GC-MS	GB 5009.265-2021 Method 2; EPA 8270	Capillary GC with mass-spectrometric detection in SIM mode (m/z per PAH congener)	~ 0.5-1.0 µg/kg in food; ~ 0.1 µg/L in water	Broader PAH coverage; the preferred method for environmental and complex matrices; can distinguish isomers (BbF vs BkF)
HPLC-UV	EPA 8100	HPLC with UV detection at 254 nm	~ 10 µg/kg	Lower sensitivity; used for high-concentration industrial samples

The HPLC-FLD is the preferred method for food and water because the fluorescence detection gives 1-2 orders of magnitude lower detection limits than the UV or MS detection. The programmable-wavelength fluorescence detector is the key — each PAH congener has a different optimum excitation/emission wavelength pair, and the detector is programmed to switch wavelengths at the retention time of each congener, maximising the sensitivity for each. A typical 16-PAH HPLC-FLD programme uses 6-8 excitation/emission wavelength pairs across the chromatographic run.

The GC-MS is the preferred method for environmental and complex matrices (soil, sediment, waste, tobacco smoke) because the mass spectrometric detection gives structural confirmation (the molecular ion + the characteristic fragmentation pattern) that the fluorescence detector cannot. The GC-MS can also distinguish the isomeric PAHs that co-elute on the HPLC (BbF vs BkF; BaA vs Chr; DahA vs BghiP).

Sample preparation: extraction, cleanup, and the matrix challenge

The sample preparation is the most critical step of the B[a]P test — the PAHs are present at trace levels (µg/kg) in a complex matrix (food, soil, water) and must be extracted, concentrated, and cleaned up before the HPLC or GC-MS analysis.

For food (GB 5009.265-2021):

1. Saponification — The sample (oil, meat, seafood) is saponified with ethanolic KOH (the fat is hydrolysed to fatty acid salts + glycerol; the PAHs are released from the fat matrix).
2. Extraction — The PAHs are extracted from the saponified mixture with cyclohexane or n-hexane.
3. Cleanup — The extract is cleaned up by GPC (gel permeation chromatography) to remove the high-molecular-weight fat residue; or by SPE (silica / alumina / Florisil cartridge) to remove the polar interferents.
4. Concentration — The cleaned extract is concentrated under nitrogen to a defined volume (typically 0.5-1.0 mL) for the HPLC or GC-MS injection.

For water (EPA 550 / 550.1):

1. SPE — The water sample (typically 1 L) is passed through a C18 or polymer SPE cartridge; the PAHs bind the C18; the cartridge is eluted with dichloromethane or acetonitrile.
2. Concentration — The eluate is concentrated under nitrogen.
3. HPLC-FLD — The concentrated eluate is injected.

For soil / sediment (EPA 8270 / 8100):

1. Soxhlet or pressurised-liquid extraction (PLE) with dichloromethane / hexane.
2. GPC or SPE cleanup for the humic-acid and oil interferents.
3. GC-MS or HPLC-FLD.

The matrix-matched calibration is essential — the response factor of the PAHs is different in a hexane solvent calibration vs. a matrix-matched calibration (the fat residue suppresses the GC-MS signal and changes the HPLC-FLD baseline). The deuterated internal standards (BaP-d12, Chr-d12, PHE-d10) are used for the quantification and the recovery correction.

Regulatory limits: EU 1881/2006 PAH4, GB 2762, and the BaP vs PAH4 shift

The regulatory landscape has shifted from the B[a]P-only limit (pre-2012) to the dual B[a]P + PAH4 limit (2012-present in the EU), recognising that B[a]P alone underestimates the PAH contamination.

Matrix	EU limit (Regulation 1881/2006 as amended)	Chinese limit (GB 2762-2022)
Oils and fats (general)	BaP ≤ 2.0 µg/kg; PAH4 ≤ 10.0 µg/kg	BaP ≤ 10 µg/kg (general); ≤ 5 µg/kg (infant formula oil)
Cocoa beans and products	BaP ≤ 5.0 µg/kg; PAH4 ≤ 35.0 µg/kg	—
Smoked meats and products	BaP ≤ 2.0-5.0 µg/kg; PAH4 ≤ 12.0-30.0 µg/kg	BaP ≤ 5.0 µg/kg
Bivalve molluscs	BaP ≤ 5.0 µg/kg; PAH4 ≤ 30.0 µg/kg	—
Infant formula, processed cereal-based foods for infants	BaP ≤ 1.0 µg/kg; PAH4 ≤ 1.0 µg/kg	BaP ≤ 0.5 µg/kg
Coconut oil	BaP ≤ 2.0 µg/kg; PAH4 ≤ 20.0 µg/kg	—

The EU PAH4 limit is markedly tighter than the BaP-only limit for the infant formula category (PAH4 ≤ 1.0 µg/kg — among the tightest food-contaminant limits in the EU regulation). A manufacturer of infant formula oil targeting the EU market must test for both BaP and PAH4 at the sub-µg/kg level — a significant analytical challenge.

The Chinese GB 2762-2022 still regulates BaP alone (not PAH4) — but the Chinese limit for infant formula oil (BaP ≤ 5 µg/kg) is notably higher than the EU PAH4 limit (≤ 1.0 µg/kg). A Chinese manufacturer exporting to the EU must test for PAH4 and satisfy the EU limit, not just the Chinese BaP limit.

FAQ

What is the difference between BaP and PAH4?
B[a]P (benzo[a]pyrene) is a single PAH — the most-studied and the IARC Group 1 carcinogen. PAH4 is the sum of four PAHs (B[a]P + benz[a]anthracene + benzo[b]fluoranthene + chrysene) — the EU regulatory marker since 2012. The EFSA 2008 opinion found that B[a]P alone was present in only a fraction of PAH-contaminated samples and that the PAH4 captured ~90 % of the PAH-related cancer risk — hence the shift from BaP-only to PAH4 in the EU regulation.

What is a BaP equivalent and how is it calculated?
A BaP equivalent is the concentration of B[a]P that would produce the same cancer risk as a mixture of PAHs. It is calculated by multiplying each PAH congener's measured concentration by its potency equivalency factor (PEF, from the OEHHA table) to get a congener-specific BaP equivalent concentration (BEC), then summing the BECs. The ATSDR 2022 Guidance provides the PEFs and the calculation framework.

What analytical method is used for BaP testing in food?
The GB 5009.265-2021 specifies two methods: HPLC-FLD (Method 1, preferred for food — the programmable-wavelength fluorescence detection gives the lowest detection limits) and GC-MS (Method 2, preferred for complex matrices and structural confirmation). For water, the EPA 550/550.1 (SPE + HPLC-FLD); for soil/sediment, the EPA 8270 (GC-MS).

What is the EU limit for BaP and PAH4 in edible oil?
The EU Commission Regulation (EC) No 1881/2006 as amended by Regulation (EU) No 835/2011 sets BaP ≤ 2.0 µg/kg and PAH4 ≤ 10.0 µg/kg in most edible oils. For infant formula, the limit is BaP ≤ 1.0 µg/kg and PAH4 ≤ 1.0 µg/kg — among the tightest food-contaminant limits in the EU regulation.

Does China regulate PAH4?
Not yet. The Chinese GB 2762-2022 regulates BaP alone (BaP ≤ 5-10 µg/kg in oils and smoked foods). The Chinese GB 5009.265-2021 analytical method covers the 16 PAHs, so a Chinese laboratory can report PAH4 if requested, but the GB 2762-2022 regulatory limit is on BaP only.

Our benzo[a]pyrene testing capabilities

Beijing ZKGX Research (ISO/IEC 17025 accredited, CMA- and CNAS-accredited testing laboratory) provides complete benzo[a]pyrene and PAH testing across the GB, EU, EPA, and ISO standard stack:

• GB 5009.265-2021 determination of 16 PAHs in foods — Method 1 (HPLC-FLD with programmable-wavelength fluorescence detection) and Method 2 (GC-MS in SIM mode); applicable to grains, meat, seafood, oils and fats, smoked foods, infant formula.
• GB 2762-2022 contaminants-in-food compliance — BaP maximum-level verification for oils and fats (≤ 5-10 µg/kg), smoked meats (≤ 5 µg/kg), infant formula oil (≤ 5 µg/kg).
• EU Regulation 1881/2006 compliance — both BaP and PAH4 (BaP + BaA + BbF + Chr); the full 16-EPA-priority PAH panel for the EU market; BaP ≤ 2 µg/kg and PAH4 ≤ 10 µg/kg in oils; PAH4 ≤ 1 µg/kg in infant formula.
• EPA Methods 8100 / 8270 / 8310 / 610 / 550 / 550.1 — for the environmental and water matrices (soil, sediment, wastewater, drinking water, air).
• ISO 15302 BaP in oils and fats; ISO 22959 PAH panel in oils and fats by HPLC-FLD.
• ATSDR 2022 BaP-equivalent calculation — the PEF-based BaP-equivalent framework for cancer-risk assessment; the OEHHA PEFs; the OEHHA CSF of 1.7 (mg/kg/day)⁻¹.
• HPLC-FLD with programmable-wavelength fluorescence detection — 6-8 excitation/emission wavelength pairs for the 16 PAHs; detection limit ~ 0.1-0.3 µg/kg in food.
• GC-MS in SIM mode with deuterated internal standards (BaP-d12, Chr-d12, PHE-d10) — structural confirmation; isomer distinction (BbF vs BkF; BaA vs Chr); detection limit ~ 0.5 µg/kg in food.
• Sample preparation — saponification + cyclohexane extraction for fats/oils; GPC and SPE cleanup; SPE for water; Soxhlet/PLE for soil/sediment.
• PAH4 calculation — the sum of BaP + BaA + BbF + Chr per the EU Regulation 1881/2006 as amended.
• BaP-equivalent calculation — the sum of the congener-specific BECs per the ATSDR 2022 Guidance.

Suitable sample matrices include: edible oils and fats (vegetable oil, olive oil, coconut oil, fish oil, butter); smoked and grilled meats; seafood and bivalve molluscs; cereals and grains; infant formula and processed cereal-based foods for infants; cocoa and chocolate; coconut oil; drinking water; wastewater; soil and sediment; air (on a filter); tobacco and cigarette smoke; cosmetics and consumer products. Each project is delivered with a full data report (test protocol, instrument calibration, raw HPLC-FLD / GC-MS chromatograms, deuterated-internal-standard recovery, statistical analysis, classification conclusion per the applicable standard) in English and/or Chinese, with CMA/CNAS stamping. Contact Beijing ZKGX Research to scope the BaP / PAH test applicable to your product and target market.
