Resin testing

What Is Resin Testing and Why Does It Matter

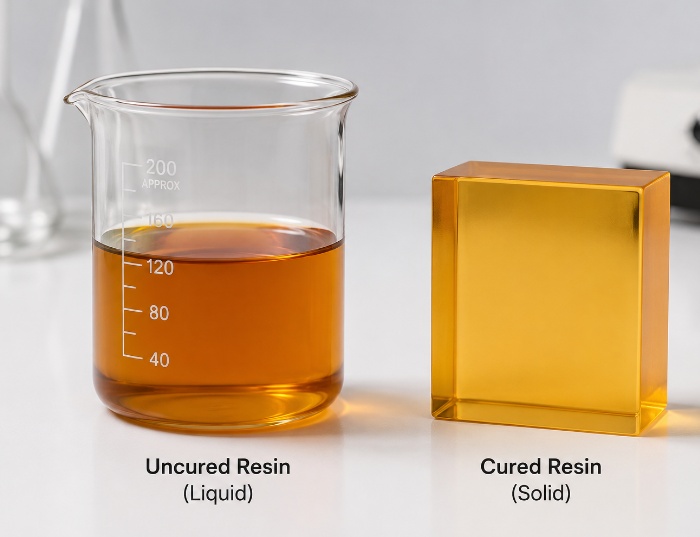

Resin testing is the systematic evaluation of physical, chemical, thermal, and mechanical properties of resins — both in their uncured liquid state and after curing — to verify that they meet performance specifications for their intended applications. Whether you work with coatings, inks, paints, adhesives, potting compounds, or ion exchange systems, resin testing ensures product consistency, identifies contamination, and confirms that a resin will perform reliably under real-world conditions.

Resins serve as the primary film-forming carriers for pigments and fillers. They cure through solvent evaporation, two-component chemical reaction (resin plus catalyst), or energy-activated processes such as UV or LED light. Because the curing mechanism directly determines final properties, testing must cover both the pre-cure state and the fully cured state.

Key Physical Properties Tested in Liquid Resins

Appearance

Appearance assessment is one of the simplest yet most informative quality checks for liquid resins. Resins are commonly described as clear, transparent, translucent, or colored. A change in color signals a shift in the wavelength absorption of visible light, which can indicate contamination, impurities in raw materials, process variations from heating and oxidation, or degradation from weathering over time.

There is no single standard test method dedicated exclusively to liquid resin appearance. However, visual comparison against a known standard is widely practiced, and objective measurements using color spectrophotometers provide consistent, reliable data. ASTM D1544 and ASTM D5386 offer guidance for assessing the color of liquid materials.

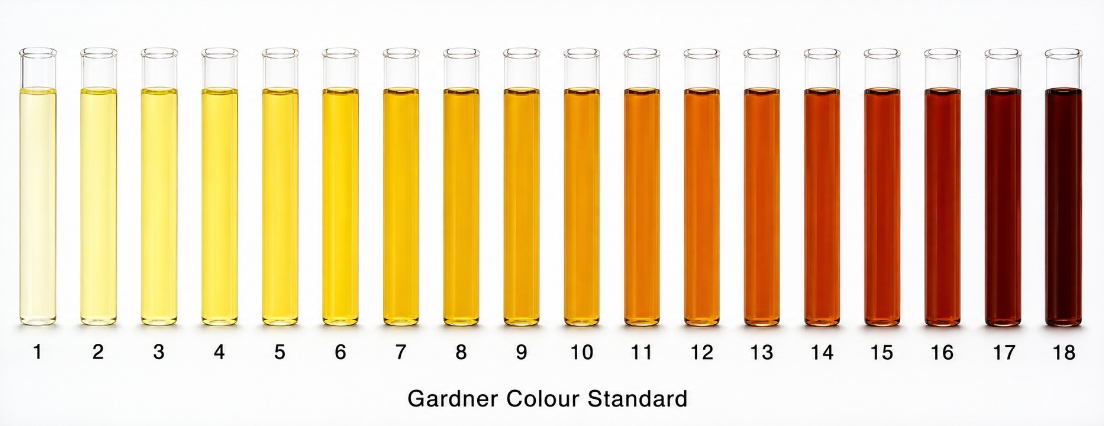

Gardner Colour Scale

The Gardner Colour Scale, specified in ASTM D1544, grades light-transmitting samples on a single-number scale ranging from 1 (lightest, pale yellow) to 18 (darkest, brownish red). It is widely used for oils, paints, chemicals, resins, varnishes, lacquers, and drying oils.

Platinum-Cobalt (Pt-Co) Colour Measurement

ASTM D5386 describes the visual platinum-cobalt method, which rates materials specifically for yellowness. This yellowness often results from the tendency of liquid hydrocarbons to absorb blue light due to contamination during processing, storage, or shipping. Clear liquids can be rated for yellowish or brownish contaminants, with additional color dimensions reported to identify pinkness, greenness, or greyness.

Viscosity Testing Methods

Viscosity is one of the most critical parameters for resin performance, affecting application behavior, flow characteristics, and process compatibility. Two primary methods dominate resin viscosity testing.

Brookfield Viscosity

Brookfield viscometry operates on the principle of rotational viscosimetry: it measures the torque required to rotate a spindle at constant speed while immersed in the test fluid. The torque is proportional to the viscous drag on the submerged spindle, and therefore to the fluid's viscosity.

A Brookfield viscometer consists of:

• A viscometer body with an electric motor and a reading dial

• Interchangeable spindles (numbered 1 through 7, where 1 is the thickest), each marked with an immersion level indicator

• A thermostatic bath to maintain test temperature

• A support stand for vertical adjustment

• Test vessels (90–92 mm diameter, 116–160 mm height)

Spindle and speed selection depends on the viscosity range, desired accuracy, and shear rate. For best accuracy, readings should fall between 46% and 95% of the dial scale. The Brookfield RV viscosity (in cP) is calculated using a coefficient that depends on the speed/spindle ratio and the average of two valid readings.

Höppler (Ball Drop) Viscosity

The Höppler viscometer measures the viscosity of transparent non-Newtonian fluids by timing how long a ball takes to travel between two marks on a thick-walled glass tube. The tube is enclosed in a wider water jacket for thermostatic control and mounted at a slight incline.

Calculation formula:

Viscosity (mPa·s) = T × (Db − Ds) × K

Where:

• T = fall time in seconds

• Db = density of the ball

• Ds = density of the sample solution

• K = ball constant (from the viscometer manual)

The Höppler method is highly accurate and widely used in the chemical, pharmaceutical, food, and mineral oil industries.

Hardness Testing

Shore Hardness

Shore Hardness measures a material's resistance to indentation. Different Shore scales exist for different material types — soft rubbers, rigid plastics, and supersoft gels — providing a common reference for material comparison.

Per DIN ISO 7619-2:2012, the hardness of rubber as measured by a Shore durometer depends on multiple factors:

• Elastic modulus of the rubber

• Viscoelastic properties

• Test piece thickness

• Indentor geometry

• Applied pressure

• Rate of pressure increase

• Time interval before hardness is recorded

Because of these variables, direct correlation between IRHD pocket meter readings and Shore durometer values is not recommended, although correlations have been established for specific rubber compounds.

Durometer Hardness (Type D)

For cured epoxy resins and other rigid materials, ASTM D2240 specifies the Type D durometer hardness test at 25°C.

Tensile Properties

Tensile Strength (ASTM D412)

ASTM D412 is the primary standard for determining the tensile properties of vulcanized (thermoset) rubber and thermoplastic elastomers. Testing is performed on a universal testing machine at a rate of 500 ± 50 mm/min until specimen failure.

The key properties measured include:

• Tensile strength — the maximum tensile stress applied in stretching a specimen to rupture

• Tensile stress at a given elongation — the stress required to stretch a uniform cross-section to a specified elongation

• Ultimate elongation — the elongation at which rupture occurs under continued tensile stress

• Tensile set — the extension remaining after stretching and retraction, expressed as a percentage of original length

Elongation at Break

Elongation at break is the percentage increase in length a material achieves before breaking. A higher percentage generally indicates better quality when combined with good tensile strength. A high elongation at break paired with low tensile strength may signal a poorly mixed or under-cured polymer — a defect that leads to premature failure in rubber gaskets and seals.

Tensile Strength and Elongation for Epoxy Resins (California Test 434)

California Test 434 Part 7 specifies a detailed procedure for preparing epoxy resin tensile specimens:

1. Mix epoxy in the specified ratio

2. Centrifuge at 2000 rpm for 3 minutes to remove air bubbles

3. Pour into a steel gasket sandwiched between Mylar sheets and plate glass

4. Cure for 18 hours at 25°C, then post-cure for 5 hours at 70°C

5. Cut specimens and test per ASTM D638 at 0.2 in/min with a 1-in gauge length

Epoxy Resin Adhesive Testing (California Test 434)

California Test 434 covers a comprehensive suite of epoxy resin adhesive, binder, and sealant tests:

Gel Time

Gel time is measured by mixing components A and B at the manufacturer's recommended ratio in an 8-oz paper cup, stirring for 60 seconds, and probing every 30 seconds. The gel time is recorded when a soft, stringy mass forms.

Bond Strength to Concrete

Epoxy adhesive is applied between a pipe cap (or threaded rod) and a concrete block (7 × 3.5 × 2 in, made from a specified Portland cement formula). The specimen is pulled at 0.2 in/min after the specified cure time.

Tensile Adhesion and Cohesion

Specimens are prepared by bonding epoxy to ceramic or retroreflective pavement markers, cured for 24 hours at 25°C, and tested in triplicate. Post-cure conditioning includes 48 hours at 60°C followed by 24 hours at −9°C to evaluate thermal cycling performance.

Slant Shear Strength

Diagonal concrete mortar blocks (2-in square base, with a 2 × 4 in diagonal face) are bonded with epoxy and tested in compression to evaluate shear performance.

Sag Test

Epoxy is applied to a vertical chart and observed after 24 hours at 25°C. The epoxy should not sag or flow downward; edges must remain straight.

Infrared Spectra

Each epoxy component is centrifuged at approximately 15,000 rpm to separate liquid and solid phases. A drop of the supernatant is placed on a potassium bromide disk and analyzed by transmission spectroscopy per ASTM E1252. The resulting spectrum is compared to reference spectra for quality verification.

Resin Classification and Types Subject to Testing

Thermosetting Resins

• Unsaturated polyester

• Vinyl ester

• Epoxy resin

• Phenolic resin

• Bismaleimide (BMI) resin

• Polyimide resin

Thermoplastic Resins

• Polypropylene (PP)

• Polycarbonate (PC)

• Nylon (NYLON)

• Polyether ether ketone (PEEK)

• Polyethersulfone (PES)

Comprehensive Resin Testing Capabilities

Physical Properties Testing

Apparent density, transmittance, haze, yellow index, whiteness, expansion ratio, water content, acidity, and hardness.

Structure Analysis

Structure analysis characterizes the resin skeleton, functional groups, cross-linking agents, and cross-linking degree. Techniques include:

• Fourier Transform Infrared Spectroscopy (FTIR)

• Thermogravimetric Analysis (TGA)

• Differential Scanning Calorimetry (DSC)

• Elemental Analysis

• Pyrolysis Gas Chromatography-Infrared Spectroscopy (PGC-IR)

• Pyrolysis Gas Chromatography-Mass Spectrometry (PGC-MS)

• Nuclear Magnetic Resonance (NMR)

• Differential Thermal Analysis (DTA)

Combustion Performance Testing

Vertical combustion, ignition temperature, oxygen index, and horizontal combustion.

Thermal Performance Testing

Heat distortion temperature, thermal decomposition temperature, Vicat softening point, high and low temperature impact, glass transition temperature, and melting temperature.

Applicability Testing

Electrical conductivity, corrosion resistance, low temperature resistance, hydraulic resistance, insulation performance, moisture permeability, and food/pharmaceutical safety performance.

Fatigue Testing of Thermoplastic Resins

Fatigue properties are frequently overlooked during resin selection yet are critical for products subjected to cyclic loading. Standard technical data sheets rarely include fatigue data, and tensile properties alone cannot predict fatigue life.

Research comparing three ABS grades and one SAN resin demonstrated this clearly:

Sample	Thermoplastic	Avg UTS (MPa)	Avg Elongation at Break (%)	Avg Modulus (MPa)
Resin 1	ABS	42.2 ± 0.1	21.1 ± 2.0	872 ± 0.1
Resin 2	ABS	38.9 ± 0.1	20.2 ± 2.0	770 ± 63.9
Resin 3	ABS	42.9 ± 0.0	16.3 ± 0.6	921 ± 3.6
Resin 4	SAN	71.9 ± 0.4	6.7 ± 0.4	1162 ± 21.1

Although SAN (Resin 4) exhibited the highest tensile strength and stiffness, its S-N fatigue curve showed that at high cycle counts, ABS Resin 3 displayed a clear fatigue life advantage. This proves that tensile data alone is insufficient for predicting long-term cyclic performance. Fatigue testing should be integrated early in the design process to reduce risk, lower costs, and shorten design cycles.

Ion Exchange Resin Laboratory Testing

Equipment Setup

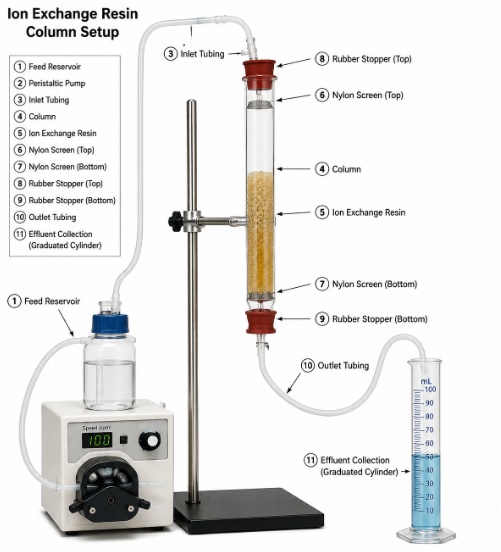

A standard lab-scale column system consists of:

• A 25 mm diameter × 1200 mm tall glass column with sintered glass bottom (plastic columns are also acceptable)

• Rubber stoppers at each end with glass tubing

• Nylon cloth or screen over each stopper to retain resin beads

• 3 mm glass beads or sand (15–25 mm depth) for fluid distribution

• Rubber tubing with screw clamp for flow control

• Funnel, pump (peristaltic or diaphragm), and graduated cylinder

Key Process Parameters

Parameter	Recommended Range
Resin Volume	50–250 mL (125 mL typical)
Resin Bed Depth	760 mm (classified, minimum)
Service Flow Rate	2–50 BV/h (8–20 BV/h typical)
Regenerant Flow Rate	2–6 BV/h (2 BV/h typical)
Regenerant Contact Time	15–60 minutes (≥30 minutes preferred)
Slow Displacement Rinse	1–2 BV
Final Fast Rinse	2–10 BV

Sample Preparation

Resin must be soaked and fully hydrated before testing. Storage containers should remain sealed, protected from direct sunlight and extreme temperatures. If resin has been stored for an extended period, rinse with 5–10 bed volumes of demineralized water to reduce leachables before trials.

Load the column by first filling it one-third to one-half full with deionized water, then transferring the pretreated resin. Maintain a minimum bed depth of 760 mm. Never load resin into a dry column.

Running the Trial

1. Backwash the loaded column with demineralized water in up-flow direction for 10–15 minutes to classify the bed.

2. Note the resin height (bed volume) after classification — this value is used for all subsequent calculations.

3. Run the resin to exhaustion or the desired endpoint without stopping mid-cycle (stopping allows reversible ion exchange reactions to reach equilibrium, causing premature breakthrough and false results).

4. Keep the bed covered with solution at all times; never drain the column or introduce air.

5. Obtain three consecutive cycles with consistent results before adjusting operating conditions.

Regeneration Methods

Co-flow (co-current) regeneration is the simplest approach: regenerant passes down through the resin in the same direction as service flow. Each cycle begins with backwashing to relieve compaction and remove suspended solids. Feed solutions should be filtered before entering the column.

Counter-flow (counter-current) regeneration is more efficient, producing lower leakage and better regenerant utilization. The regenerant flows opposite to service direction. This method requires careful setup — the bed must not fluidize during upflow regeneration. Placing cotton or glass wool on top of the resin fills the freeboard space and stabilizes the column.

Applicable Testing Standards

Standard	Scope
ASTM D412	Tensile properties of rubber and thermoplastic elastomers
ASTM D638	Tensile properties of plastics
ASTM D1544	Gardner colour scale for transparent liquids
ASTM D5386	Platinum-cobalt colour measurement
ASTM D2240	Durometer hardness
ASTM D1475	Density of paint, varnish, lacquer, and related products
ASTM D6493	Resin testing
ASTM D4142	Resin testing
ASTM F1635	Resin testing
ASTM E1252	Infrared spectroscopy
California Test 434	Epoxy resin adhesives, binders, and sealants
DIN ISO 7619-2	Indentation hardness of rubber
ISO 16402	Resin standards
ISO 24024	Resin standards
ISO 19699	Resin standards
ISO 4586	Resin standards

Choosing the Right Resin Testing Approach

The appropriate testing regime depends on the resin type, application, and regulatory requirements. For coatings and adhesives, appearance, viscosity, and cure characteristics are primary concerns. For structural and potting applications, mechanical properties — tensile strength, elongation, hardness, and fatigue life — take priority. For ion exchange systems, capacity, leakage, and regeneration efficiency are the key metrics.

A common mistake is relying solely on tensile data for resin selection. As fatigue testing demonstrates, materials with similar or even superior tensile properties can exhibit dramatically different performance under cyclic loading. Integrating fatigue testing early in the design process reduces the risk of late-stage failures and costly redesigns.

For compliance-driven industries, third-party testing laboratories provide resin testing services conforming to ISO, ASTM, and industry-specific standards, offering both routine analyses and custom test programs tailored to specific end-use requirements.
